HW7: For all problems, you must describe Tension or Compression using 'T' and 'C' Question#3: Determine member forces

Post by **answerhappygod** » Mon May 16, 2022 9:06 am

: Hw7 For All Problems You Must Describe Tension Or Compression Using T And C Question 3 Determine Member Forces 1 (7.62 KiB) Viewed 65 times

: Hw7 For All Problems You Must Describe Tension Or Compression Using T And C Question 3 Determine Member Forces 2 (25.58 KiB) Viewed 65 times

: Hw7 For All Problems You Must Describe Tension Or Compression Using T And C Question 3 Determine Member Forces 3 (23.83 KiB) Viewed 65 times

: Hw7 For All Problems You Must Describe Tension Or Compression Using T And C Question 3 Determine Member Forces 4 (26.06 KiB) Viewed 65 times

HW7: For all problems, you must describe Tension or Compression using 'T' and 'C'

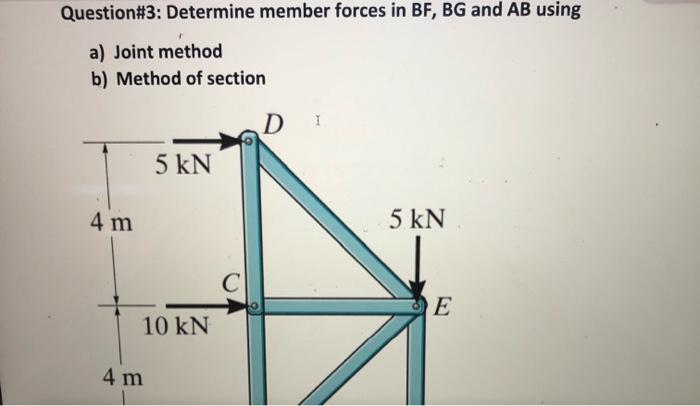

Question#3: Determine member forces in BF, BG and AB using a) Joint method b) Method of section D 1 5 kN 4 m 5 kN С ΣΕ 10 kN 4 m

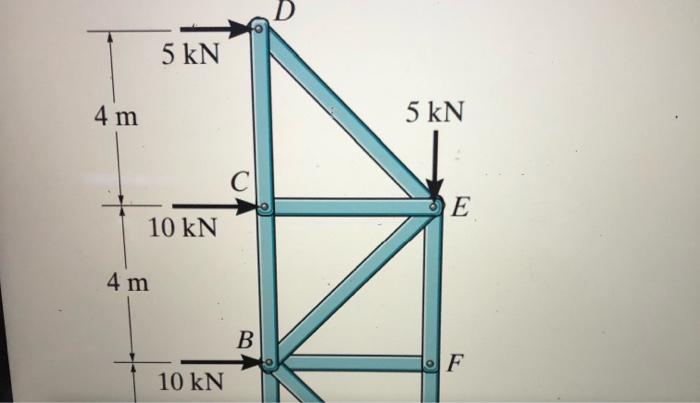

5 kN 4 m 5 kN С E 10 kN 4 m B F 10 kN

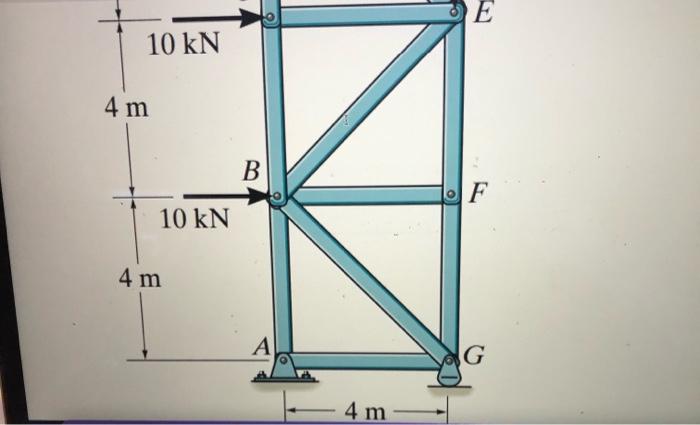

E 10 KN 4 m B F 10 kN 4 m A G 4 m
