10 KN T 3' 40 kN. S' トニー The frame shown is supported at A and C with hinge support and roller support, respectively. A

Post by answerhappygod »

1
1 (46.19 KiB) Viewed 60 times
2
2 (46.19 KiB) Viewed 60 times

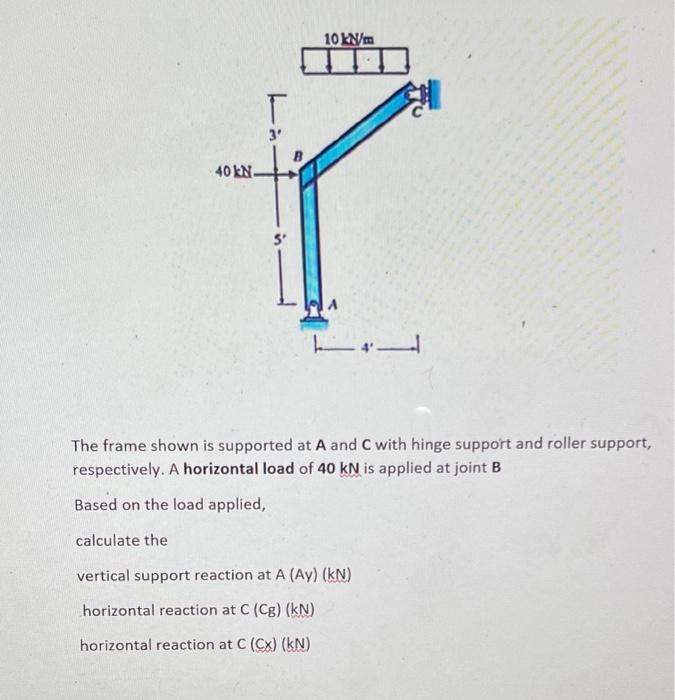

10 KN T 3' 40 kN. S' トニー The frame shown is supported at A and C with hinge support and roller support, respectively. A horizontal load of 40 kN is applied at joint B Based on the load applied, calculate the vertical support reaction at A (Ay) (kN) horizontal reaction at C (Cg) (kN) horizontal reaction at C (Cx) (kN)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
