Rigid bar ABC is supported by pin-connected bar (1). Bar (1) is 1.625 in. wide and 1.125 in. thick, and made of aluminum

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Rigid bar ABC is supported by pin-connected bar (1). Bar (1) is 1.625 in. wide and 1.125 in. thick, and made of aluminum

Post by answerhappygod »

Rigid Bar Abc Is Supported By Pin Connected Bar 1 Bar 1 Is 1 625 In Wide And 1 125 In Thick And Made Of Aluminum 1
Rigid Bar Abc Is Supported By Pin Connected Bar 1 Bar 1 Is 1 625 In Wide And 1 125 In Thick And Made Of Aluminum 1 (40.53 KiB) Viewed 38 times

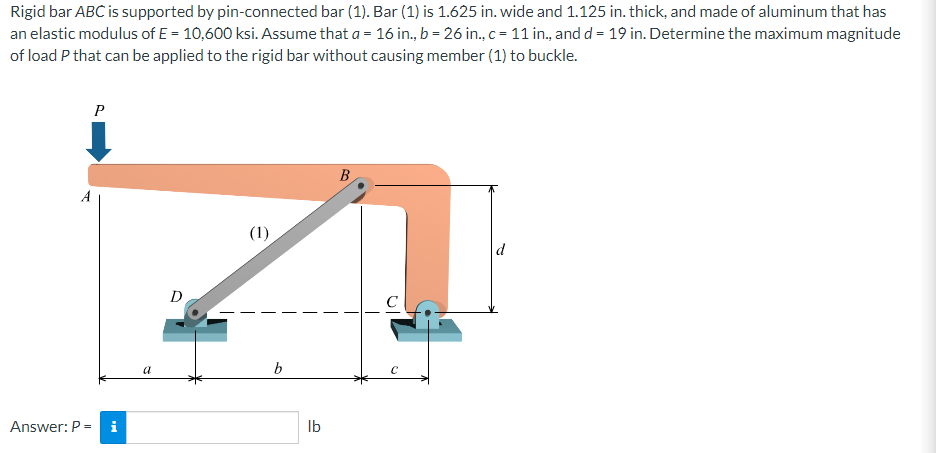

Rigid bar ABC is supported by pin-connected bar (1). Bar (1) is 1.625 in. wide and 1.125 in. thick, and made of aluminum that has an elastic modulus of E = 10,600 ksi. Assume that a = 16 in., b= 26 in., c = 11 in., and d = 19 in. Determine the maximum magnitude of load P that can be applied to the rigid bar without causing member (1) to buckle. P B A (1) d D с b Answer: P = i Ib
