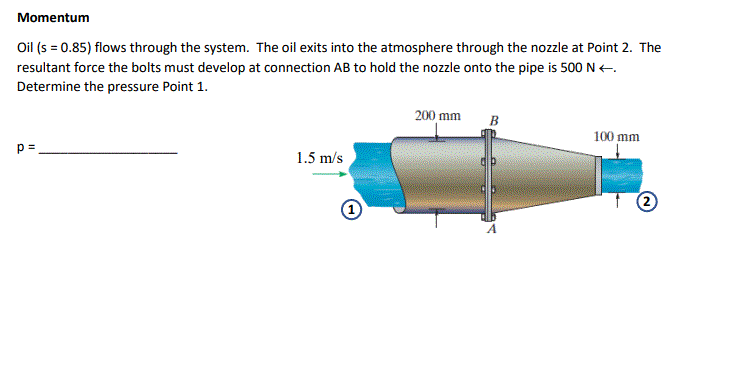

Momentum Oil (s = 0.85) flows through the system. The oil exits into the atmosphere through the nozzle at Point 2. The resultant force the bolts must develop at connection AB to hold the nozzle onto the pipe is 500 N Determine the pressure Point 1. 200 mm B 100 mm 1.5 m/s p = 2
Momentum Oil (s = 0.85) flows through the system. The oil exits into the atmosphere through the nozzle. Determine the resultant force the bolts must develop at connection AB to hold the nozzle onto the pipe. The pressure measured at Point 1 is 30 kPa. 200 mm B 100 mm 2 m/s F = 1 2
