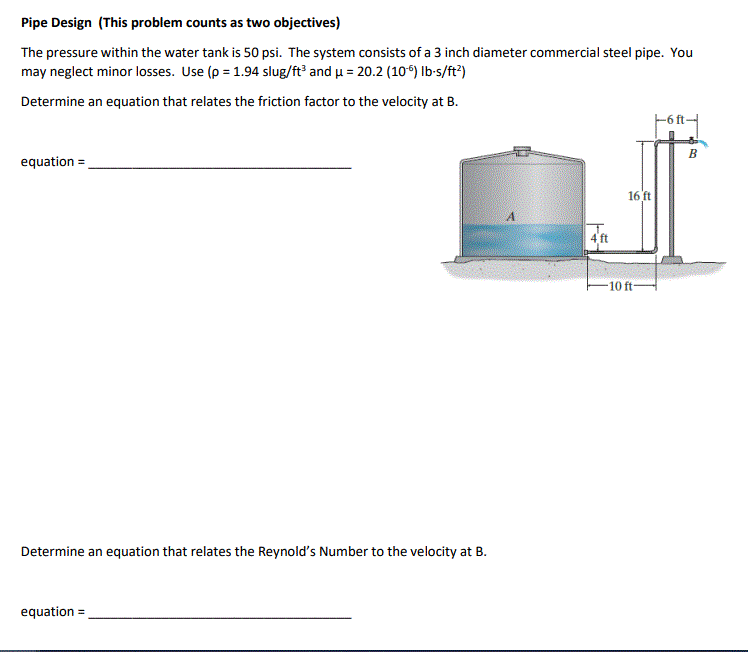

Pipe Design (This problem counts as two objectives) The pressure within the water tank is 50 psi. The system consists of a 3 inch diameter commercial steel pipe. You may neglect minor losses. Use (p = 1.94 slug/ft and u = 20.2 (106) Ib-s/ft2) Determine an equation that relates the friction factor to the velocity at B. Font B equation = 16 ft 4 ft -10 ft Determine an equation that relates the Reynold's Number to the velocity at B. equation =
Pipe Design Continued: Determine a friction factor and velocity that satisfies the equations above using the iterative process. f v (ft/s) R Determine the flow rate through the system. Q=
