Questions 21-25. At the instant shown, the uniform disk rotates about pin O rad which connects at its rim with angular v

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Questions 21-25. At the instant shown, the uniform disk rotates about pin O rad which connects at its rim with angular v

Post by answerhappygod »

Questions 21 25 At The Instant Shown The Uniform Disk Rotates About Pin O Rad Which Connects At Its Rim With Angular V 1
Questions 21 25 At The Instant Shown The Uniform Disk Rotates About Pin O Rad Which Connects At Its Rim With Angular V 1 (95.33 KiB) Viewed 55 times

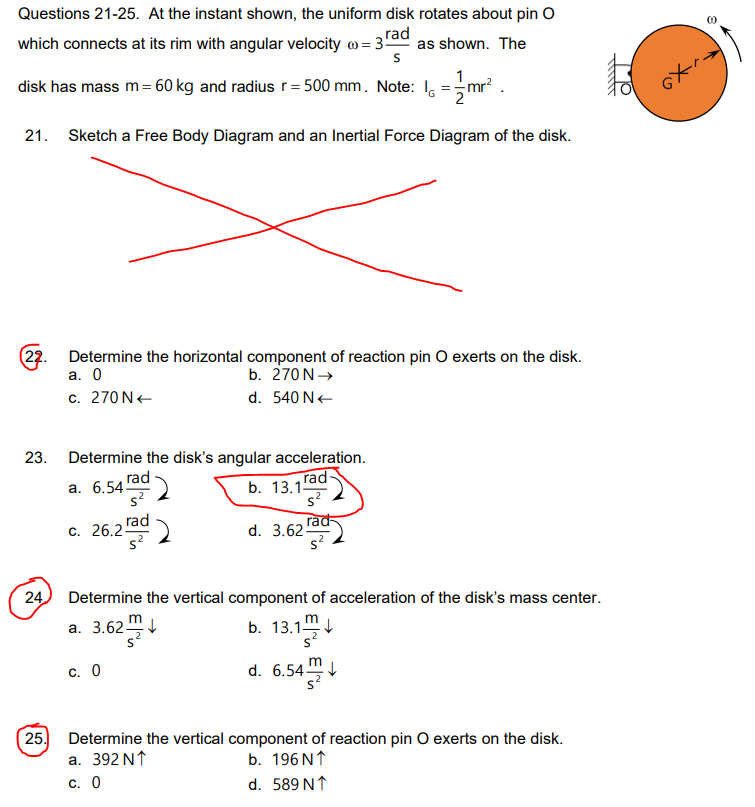

Questions 21-25. At the instant shown, the uniform disk rotates about pin O rad which connects at its rim with angular velocity o=360 as shown. The S 1 disk has mass m=60 kg and radius r = 500 mm. Note: 16 mr2 ta G* 21. Sketch a Free Body Diagram and an Inertial Force Diagram of the disk. 22. Determine the horizontal component of reaction pin O exerts on the disk. a. O b. 270 N c. 270N+ d. 540 N 23. Determine the disk's angular acceleration. rad . b. 13.1 s? a. 6.545ad2 rad c. 26.2 s? d. 3.62 s? 24) Determine the vertical component of acceleration of the disk's mass center. . b. 13.15 a. 3.62 S S C. 0 d. 6.54 5.54, 25. Determine the vertical component of reaction pin O exerts on the disk. a. 392 NT b. 196 NT d. 589 NT c. 0
