What is the simplest workflow to find the curvature and maximum deflection of a 3D cantilever beam subjected to the foll

Post by answerhappygod »

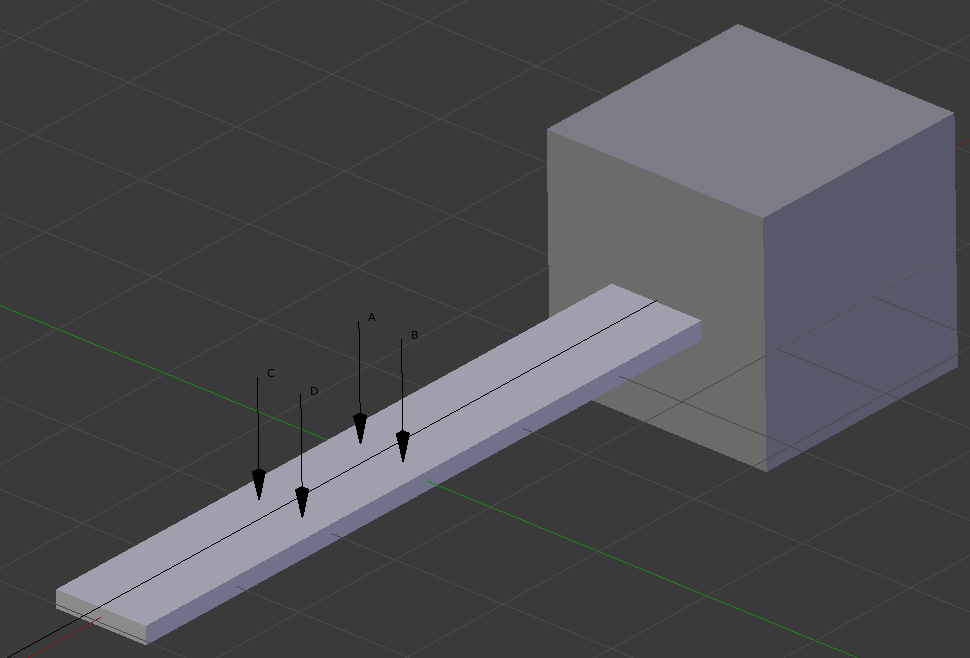

What is the simplest workflow to find the curvature and maximum
deflection of a 3D cantilever beam subjected to the following load
conditions?
What Is The Simplest Workflow To Find The Curvature And Maximum Deflection Of A 3d Cantilever Beam Subjected To The Foll 1
What Is The Simplest Workflow To Find The Curvature And Maximum Deflection Of A 3d Cantilever Beam Subjected To The Foll 1 (29.62 KiB) Viewed 28 times
Forces are assumed to be equal in magnitude and evenly
spaced.
