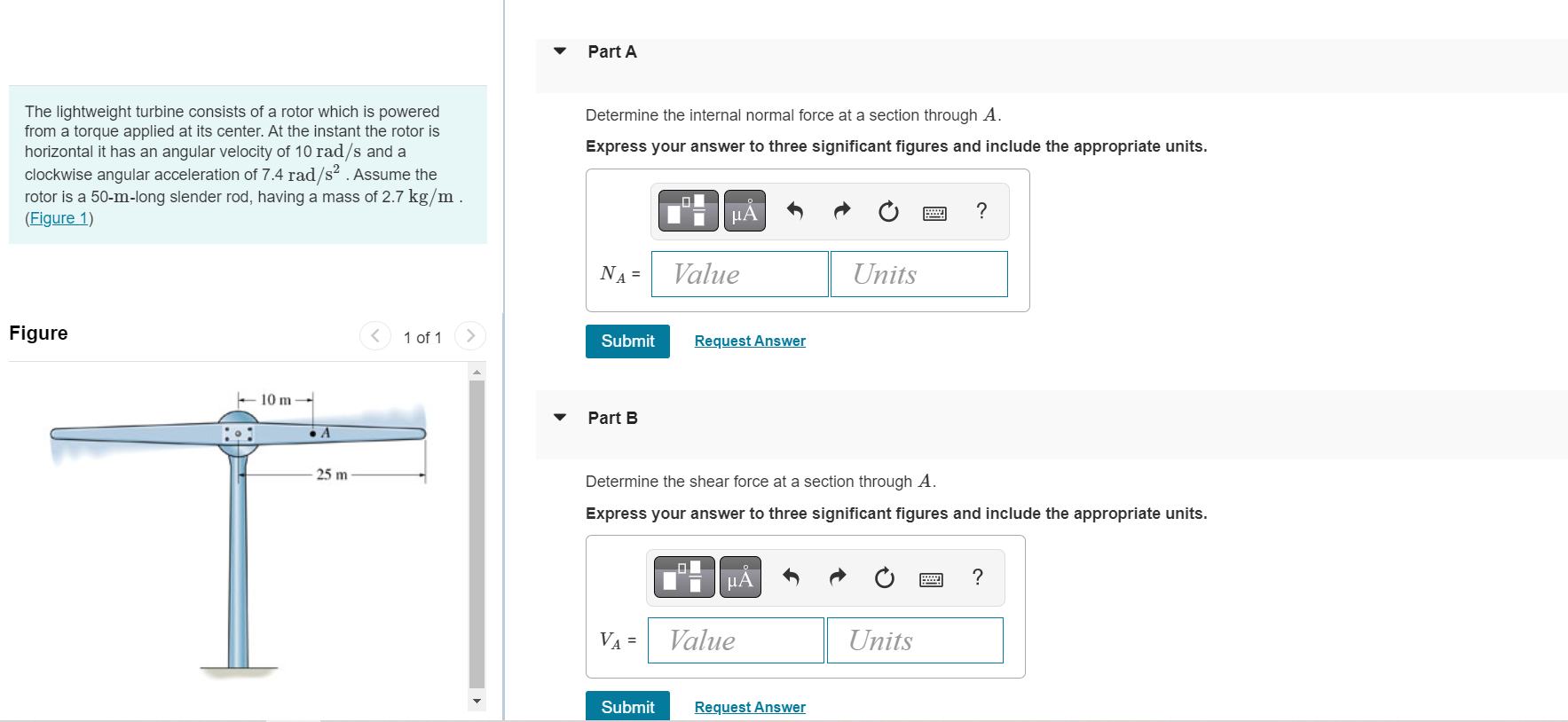

Part A Determine the internal normal force at a section through A. Express your answer to three significant figures and include the appropriate units. The lightweight turbine consists of a rotor which is powered from a torque applied at its center. At the instant the rotor is horizontal it has an angular velocity of 10 rad/s and a clockwise angular acceleration of 7.4 rad/s2 Assume the rotor is a 50-m-long slender rod, having a mass of 2.7 kg/m (Figure 1) MÅ ? NA = Value Units Figure < 1 of 1 Submit Request Answer -10 m Part B . A 25 m Determine the shear force at a section through A. Express your answer to three significant figures and include the appropriate units. ol MÅ ? VA = Value Units Submit Request Answer
Part Determine the moment at a section through A. Express your answer to three significant figures and include the appropriate units. μΑ ? MA = Value Units Submit Request Answer
