(a) A hydraulic jump is formed in a rectangular culvert with cross-section &-
it wide and 6 ft high. The water depth before the jump is found to be 2 ft and
the Froude number before the jump is found to be 4. What is the average
pressure in the culvert after the jump and the head loss associated with the
submerged hydraulic jump?
(b) If the top plate of the culvert is not in existence, and the jump is allowed
to be fully developed, what is the height of the water after the jump and how
much is the head loss caused by the jump?
(c) Compare, discuss and explain the head loss obtained for (a) and (b)!
A A Hydraulic Jump Is Formed In A Rectangular Culvert With Cross Section It Wide And 6 Ft High The Water Depth Bef 1 (25.56 KiB) Viewed 41 times

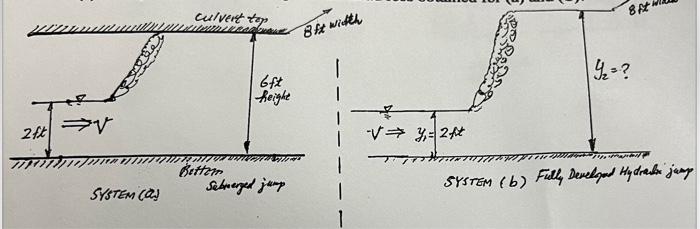

culvert to 84 que 81 witth 92-? 6 ft height 2ft v vy=2ft 77 WWW/ Better Sebnerged jump SYSTEM (6) Fully Developed Hydraadi jump SYSTEM (2)
