Q2 (a) Referring to Figure Q2 (a), the vertical stress increase at point A is 25 kN/m² due to application of line loads

Post by answerhappygod »

Q2 A Referring To Figure Q2 A The Vertical Stress Increase At Point A Is 25 Kn M Due To Application Of Line Loads 1
Q2 A Referring To Figure Q2 A The Vertical Stress Increase At Point A Is 25 Kn M Due To Application Of Line Loads 1 (29.88 KiB) Viewed 38 times

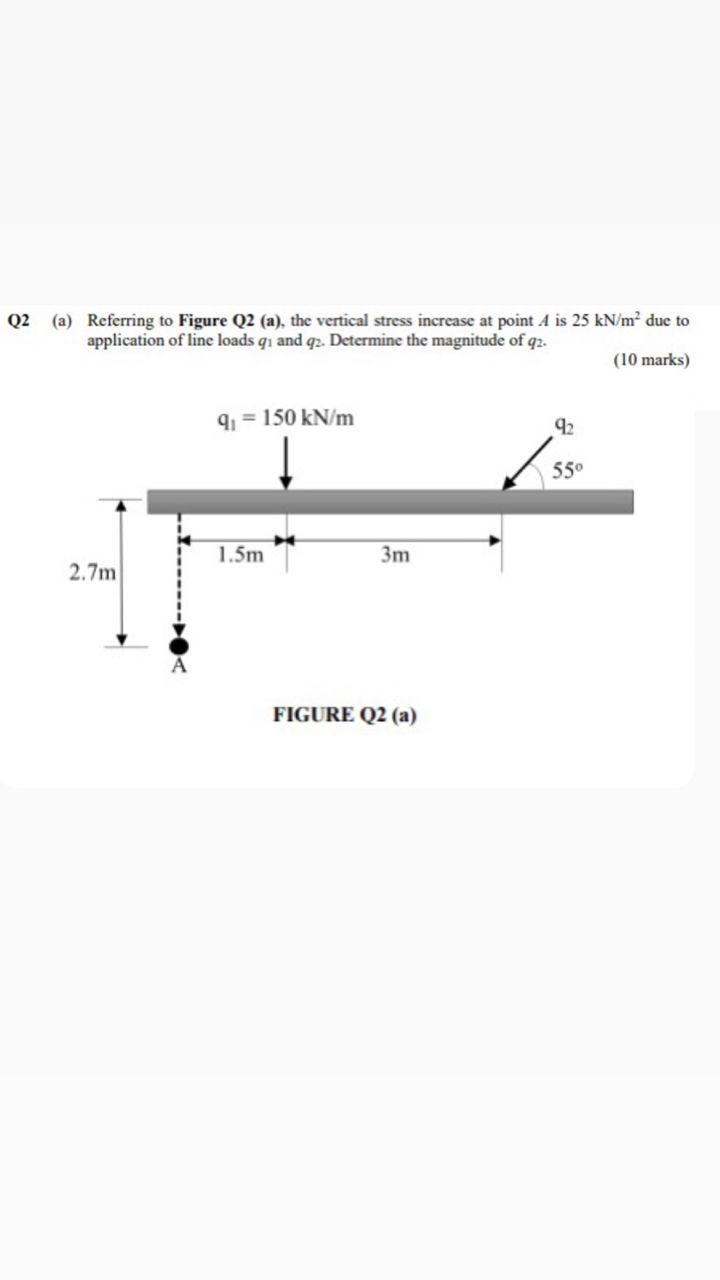

Q2 (a) Referring to Figure Q2 (a), the vertical stress increase at point A is 25 kN/m² due to application of line loads gi and 22. Determine the magnitude of qz. (10 marks) 9. = 150 kN/m 92 55° 1.5m 3m 2.7m FIGURE Q2 (a)
