Q2 (a) Referring to Figure Q2 (a), the vertical stress increase at point A is 25 kN/m² due to application of line loads

Post by answerhappygod »

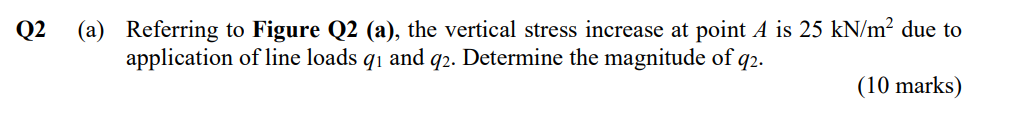

Q2 A Referring To Figure Q2 A The Vertical Stress Increase At Point A Is 25 Kn M Due To Application Of Line Loads 1
Q2 A Referring To Figure Q2 A The Vertical Stress Increase At Point A Is 25 Kn M Due To Application Of Line Loads 1 (29.43 KiB) Viewed 31 times
Q2 (a) Referring to Figure Q2 (a), the vertical stress increase at point A is 25 kN/m² due to application of line loads qı and q2. Determine the magnitude of q2. (10 marks)
91 = 150 kN/m 92 550 1.5m 3m 2.7m A FIGURE Q2 (a)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
