Q1. The following points and their offsets are given: Item X-offset y-offset z-offset A 11 -5 20 B 19 15 45 с 25 30 65 D
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Q1. The following points and their offsets are given: Item X-offset y-offset z-offset A 11 -5 20 B 19 15 45 с 25 30 65 D

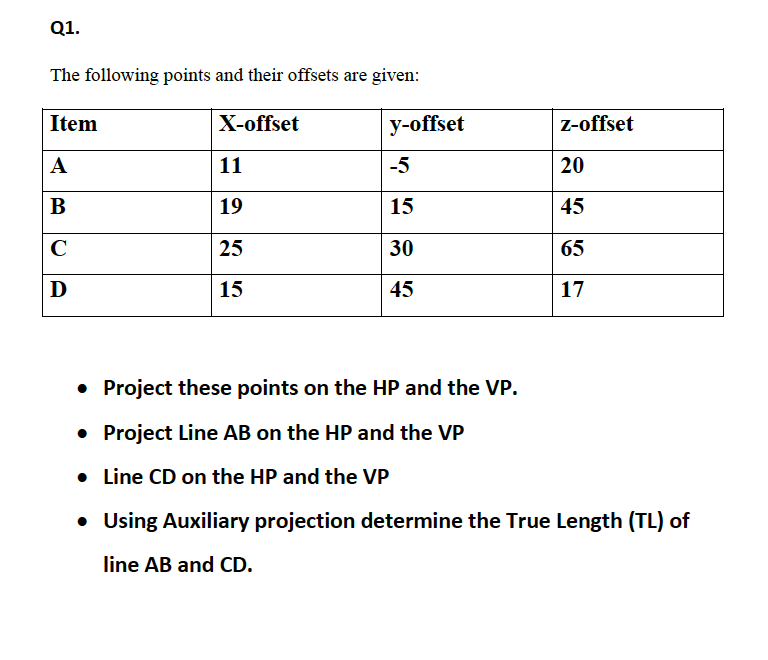

Q1. The following points and their offsets are given: Item X-offset y-offset z-offset A 11 -5 20 B 19 15 45 с 25 30 65 D 15 45 17 • Project these points on the HP and the VP. • Project Line AB on the HP and the VP • Line CD on the HP and the VP • Using Auxiliary projection determine the True Length (TL) of line AB and CD.
