Draw completely the approximate shear and moment diagrams for the beam loaded as shown. E is constant. Use (3) Slope Def

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Draw completely the approximate shear and moment diagrams for the beam loaded as shown. E is constant. Use (3) Slope Def

Post by answerhappygod »

Draw Completely The Approximate Shear And Moment Diagrams For The Beam Loaded As Shown E Is Constant Use 3 Slope Def 1
Draw Completely The Approximate Shear And Moment Diagrams For The Beam Loaded As Shown E Is Constant Use 3 Slope Def 1 (515.56 KiB) Viewed 54 times

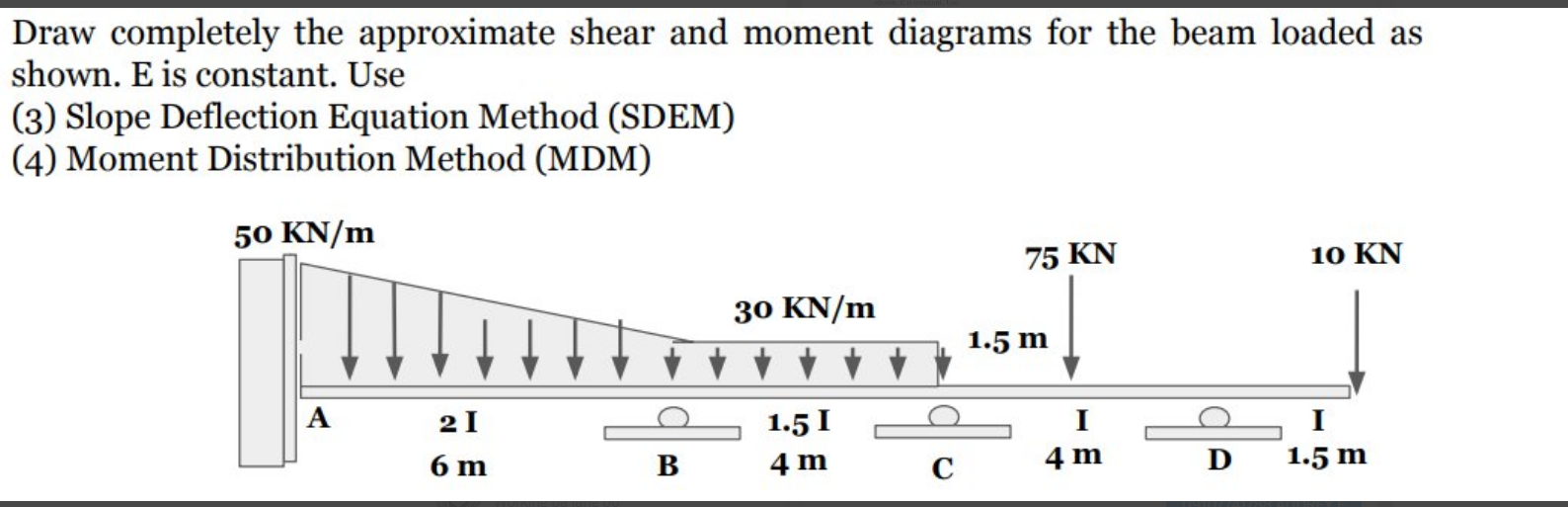

Draw completely the approximate shear and moment diagrams for the beam loaded as shown. E is constant. Use (3) Slope Deflection Equation Method (SDEM) (4) Moment Distribution Method (MDM) 50 KN/m 75 KN 10 KN 30 KN/m 1.5 m A 21 6 m 1.5 1 4 m I 1.5 m B с 4 m D
