4. A non-preloaded bolt connection of beam-to-column using an end plate as shown in Figure 3 below. As a designer of the

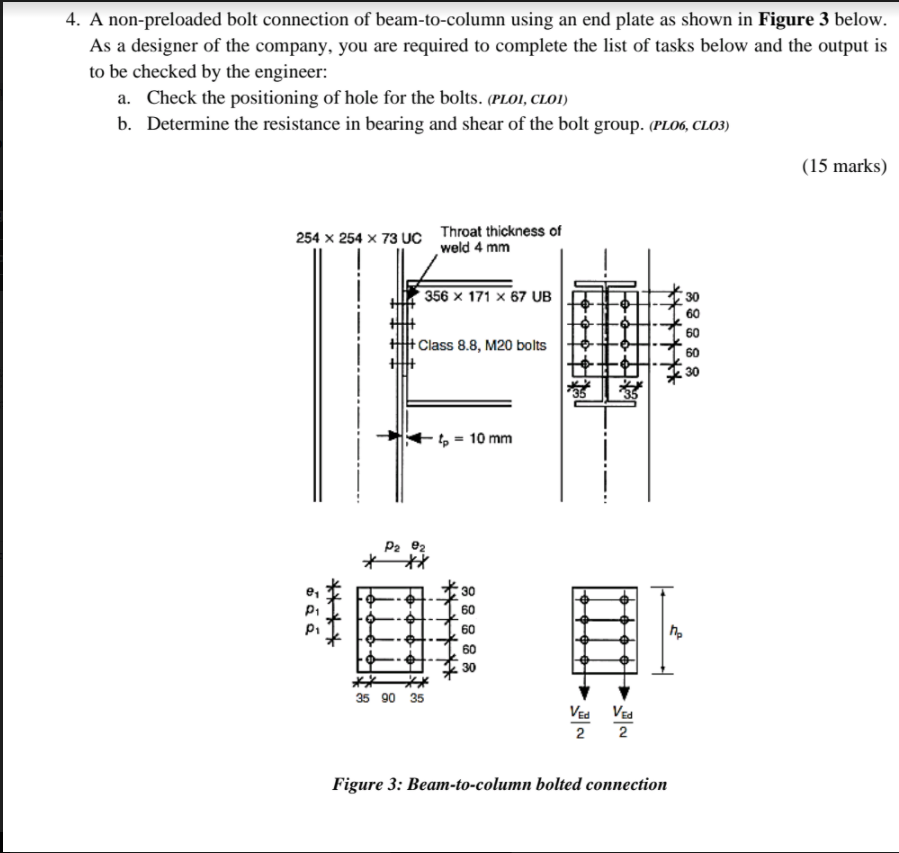

4. A non-preloaded bolt connection of beam-to-column using an end plate as shown in Figure 3 below. As a designer of the company, you are required to complete the list of tasks below and the output is to be checked by the engineer: a. Check the positioning of hole for the bolts. (PLOI, CLOI) b. Determine the resistance in bearing and shear of the bolt group. (PLO6, CL03) (15 marks) 254 x 254 X 73 UC Throat thickness of weld 4 mm 356 x 171 x 67 UB 30 60 60 60 Class 8.8, M20 bolts - tp = 10 mm Pa ez P1 30 60 60 60 30 m no * 35 90 35 Ved Ved 2 2 Figure 3: Beam-to-column bolted connection
