3. A 10 mm thick end plate is to be welded to a UB as shown in Figure 2 (side view and front view) before being bolted t
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3. A 10 mm thick end plate is to be welded to a UB as shown in Figure 2 (side view and front view) before being bolted t

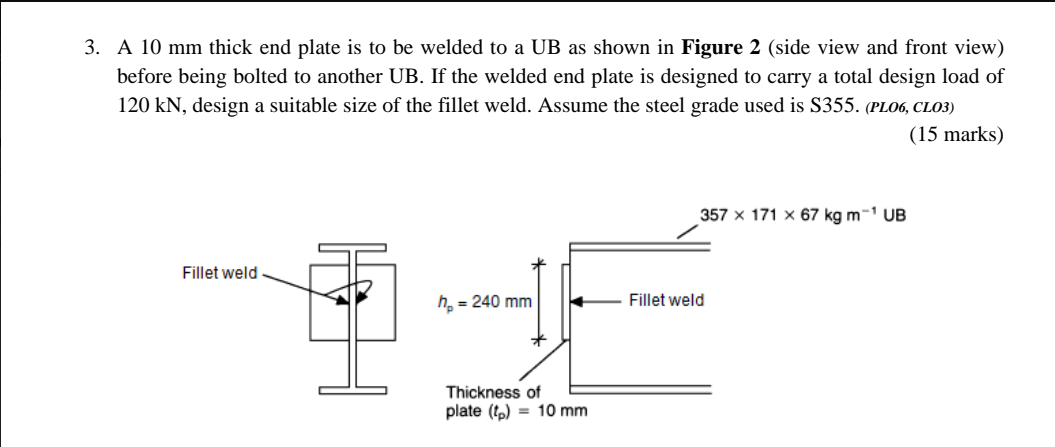

3. A 10 mm thick end plate is to be welded to a UB as shown in Figure 2 (side view and front view) before being bolted to another UB. If the welded end plate is designed to carry a total design load of 120 kN, design a suitable size of the fillet weld. Assume the steel grade used is S355. (PLO6, CLO3) (15 marks) 357 x 171 x 67 kg m-UB Fillet weld h = 240 mm Fillet weld Thickness of plate (p) = 10 mm
