Q3. The simply supported beam shown in Figure Q3 carries a uniformly distributed travelling load of length 10 meters and

Post by answerhappygod »

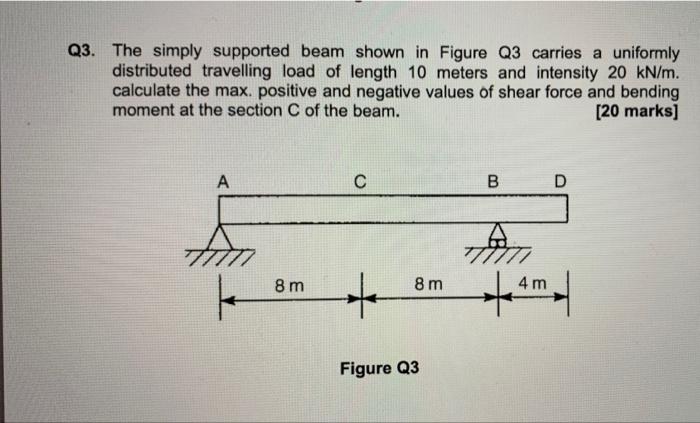

Q3 The Simply Supported Beam Shown In Figure Q3 Carries A Uniformly Distributed Travelling Load Of Length 10 Meters And 1
Q3 The Simply Supported Beam Shown In Figure Q3 Carries A Uniformly Distributed Travelling Load Of Length 10 Meters And 1 (43.4 KiB) Viewed 45 times
Q3. The simply supported beam shown in Figure Q3 carries a uniformly distributed travelling load of length 10 meters and intensity 20 kN/m. calculate the max. positive and negative values of shear force and bending moment at the section C of the beam. [20 marks] A с B 8 m 8 m + #m Figure Q3
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
