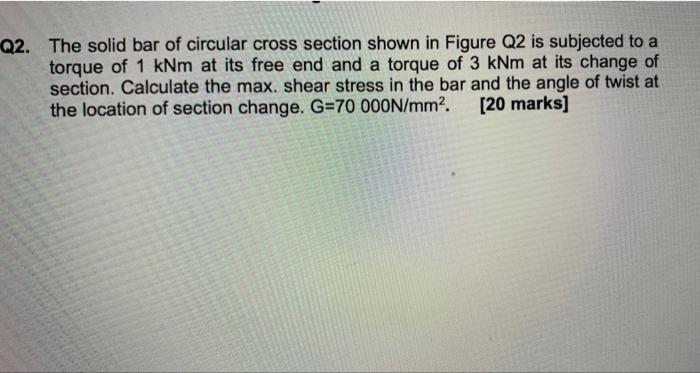

Q2. The solid bar of circular cross section shown in Figure Q2 is subjected to a torque of 1 kNm at its free end and a torque of 3 kNm at its change of section. Calculate the max. shear stress in the bar and the angle of twist at the location of section change. G=70 000N/mm2. [20 marks]

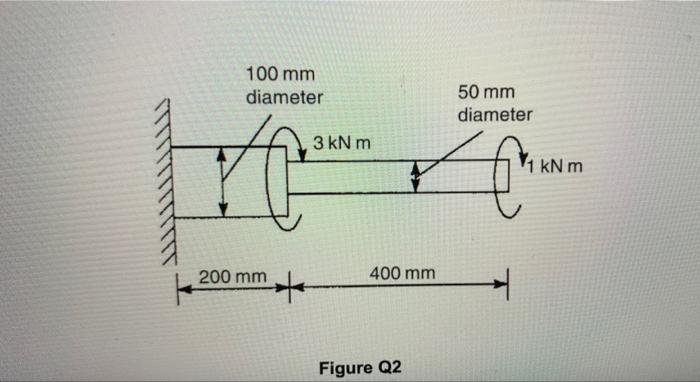

100 mm diameter 50 mm diameter 3 kN m 1 kNm 200 mm 400 mm + Figure Q2
