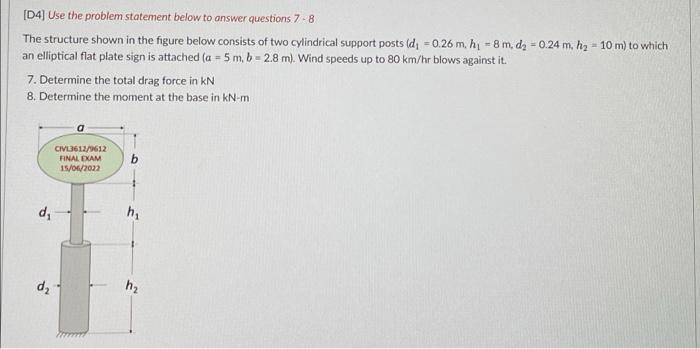

[14] Use the problem statement below to answer questions 7 - 8 The structure shown in the figure below consists of two cylindrical support posts id, -0.26 m. hi = 8 m, dy0.24 m, ha = 10m) to which an elliptical flat plate sign is attached (a = 5 m, b - 2.8 m). Wind speeds up to 80 km/hr blows against it. 7. Determine the total drag force in KN 8. Determine the moment at the base in N-m a CIVL3612/0612 FINAL EXAM 15/04/2022 b de ha de h₂

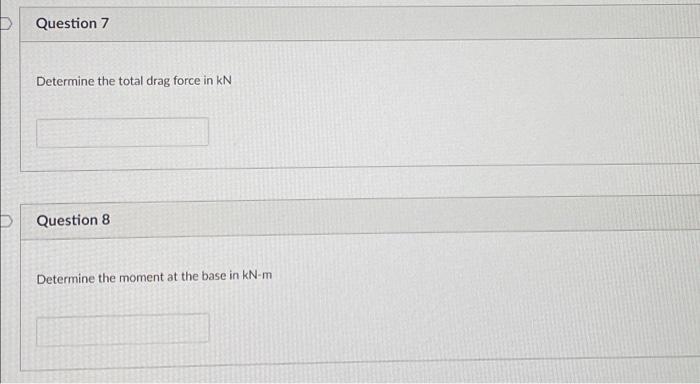

Question 7 Determine the total drag force in KN Question 8 Determine the moment at the base in kN-m
