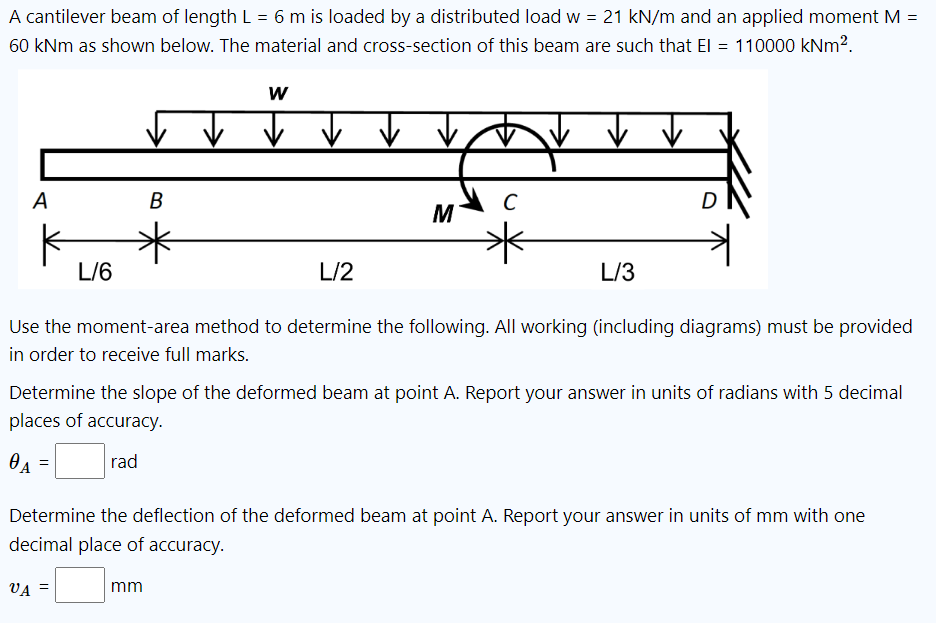

= A cantilever beam of length L = 6 m is loaded by a distributed load w = 21 kN/m and an applied moment M = 60 kNm as shown below. The material and cross-section of this beam are such that El = 110000 kNm2. = W А B с M k * L/6 L/2 L/3 Use the moment-area method to determine the following. All working (including diagrams) must be provided in order to receive full marks. Determine the slope of the deformed beam at point A. Report your answer in units of radians with 5 decimal places of accuracy. ӨА rad = Determine the deflection of the deformed beam at point A. Report your answer in units of mm with one decimal place of accuracy. VA = mm
