4. 1) For the frame structure shown below, the joints at points A, B, C, D and E are all pin connections. If force P1 =

[answerhappygod]

4 1 For The Frame Structure Shown Below The Joints At Points A B C D And E Are All Pin Connections If Force P1 1 (84.86 KiB) Viewed 60 times

I calculated Ay=190.526 and Ax=77.1058 and the magnitude of both
forces together being 205.5 however it says I am incorrect please
help

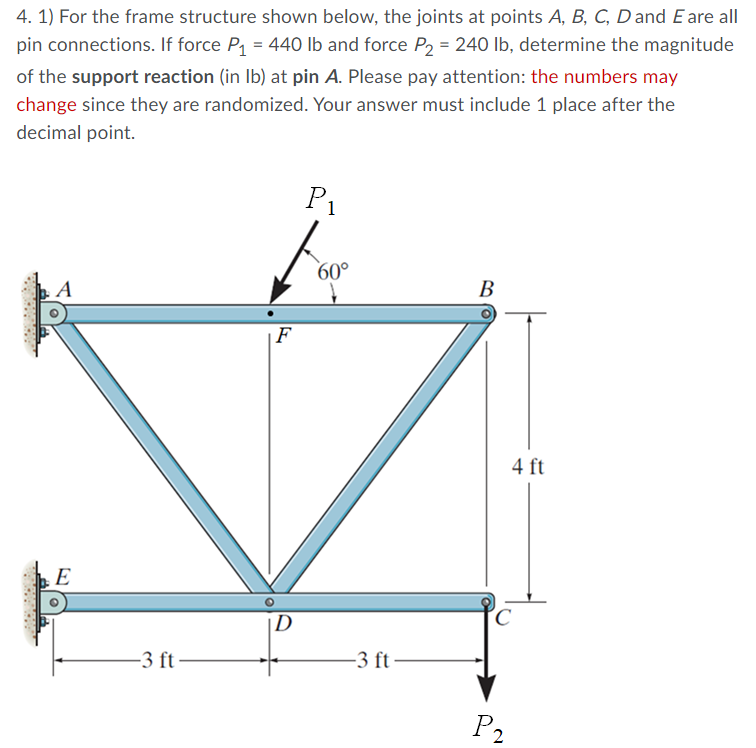

4. 1) For the frame structure shown below, the joints at points A, B, C, D and E are all pin connections. If force P1 = 440 lb and force P2 = 240 lb, determine the magnitude of the support reaction (in lb) at pin A. Please pay attention: the numbers may change since they are randomized. Your answer must include 1 place after the decimal point. P1 60° A B F 4 ft E D С -3 ft -3 ft - P2
