For the circuit shown in Figure B6, calculate (a) the currents, Ir, Ic and It; (b) the total impedance, Zt; (C) the tota

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

For the circuit shown in Figure B6, calculate (a) the currents, Ir, Ic and It; (b) the total impedance, Zt; (C) the tota

Post by answerhappygod »

For The Circuit Shown In Figure B6 Calculate A The Currents Ir Ic And It B The Total Impedance Zt C The Tota 1
For The Circuit Shown In Figure B6 Calculate A The Currents Ir Ic And It B The Total Impedance Zt C The Tota 1 (78.79 KiB) Viewed 36 times

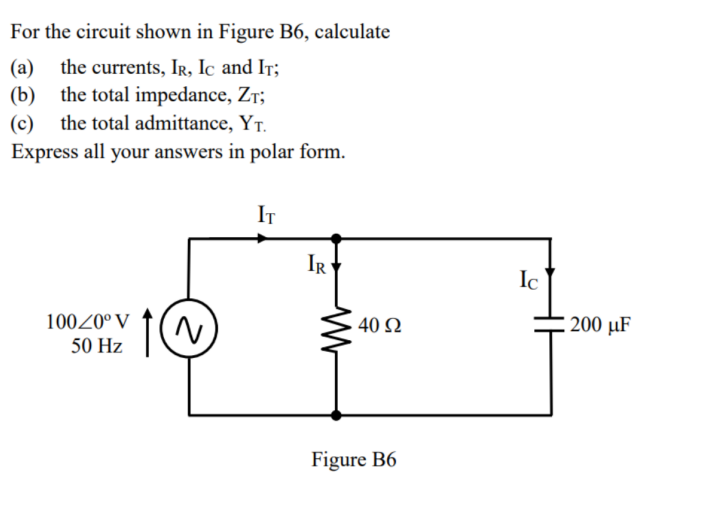

For the circuit shown in Figure B6, calculate (a) the currents, Ir, Ic and It; (b) the total impedance, Zt; (C) the total admittance, YT. Express all your answers in polar form. IT IR Ic 10020° V 50 Hz N. 40 Ω 200 uF Figure B6
