Question 5 (10 Marks) A disk of inertia ), with radius of 0.25 m, is free to rotate and is attached to two springs in pa

Post by answerhappygod »

Question 5 10 Marks A Disk Of Inertia With Radius Of 0 25 M Is Free To Rotate And Is Attached To Two Springs In Pa 1
Question 5 10 Marks A Disk Of Inertia With Radius Of 0 25 M Is Free To Rotate And Is Attached To Two Springs In Pa 1 (44.67 KiB) Viewed 55 times

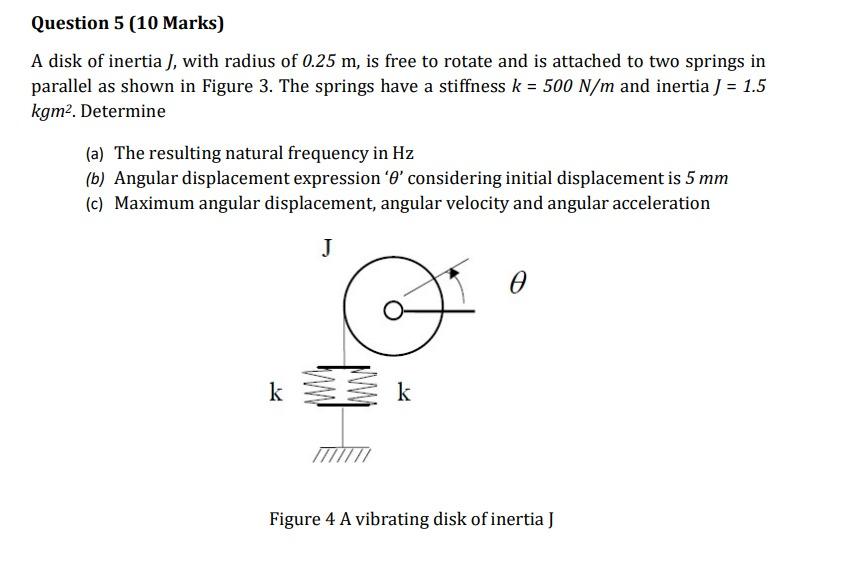

Question 5 (10 Marks) A disk of inertia ), with radius of 0.25 m, is free to rotate and is attached to two springs in parallel as shown in Figure 3. The springs have a stiffness k = 500 N/m and inertia ) = 1.5 kgm2. Determine (a) The resulting natural frequency in Hz (b) Angular displacement expression 'e' considering initial displacement is 5 mm (c) Maximum angular displacement, angular velocity and angular acceleration J Ꮎ kek Figure 4 A vibrating disk of inertia J
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
