show all the steps in solidworks.
Create assembly drawing using size B landscape drawing format.
On the drawing you have to show isometric exploded view of assembly
with balloons and BOM-material. BOM should be
filled in with Quantity, Part number, Description, and
Material.
Drawing: show isometric exploded view of assembly with balloons
and BOM-material. BOM should be filled in with Part number,
Description, and Material.
Assembly: origin of Base (main part of assembly, inserted first)
must be coincident with origin of assembly. All necessary mates in
place, exploded view created. It should be just one exploded view
with several steps. Don't forget to push button "Done" after each
step.

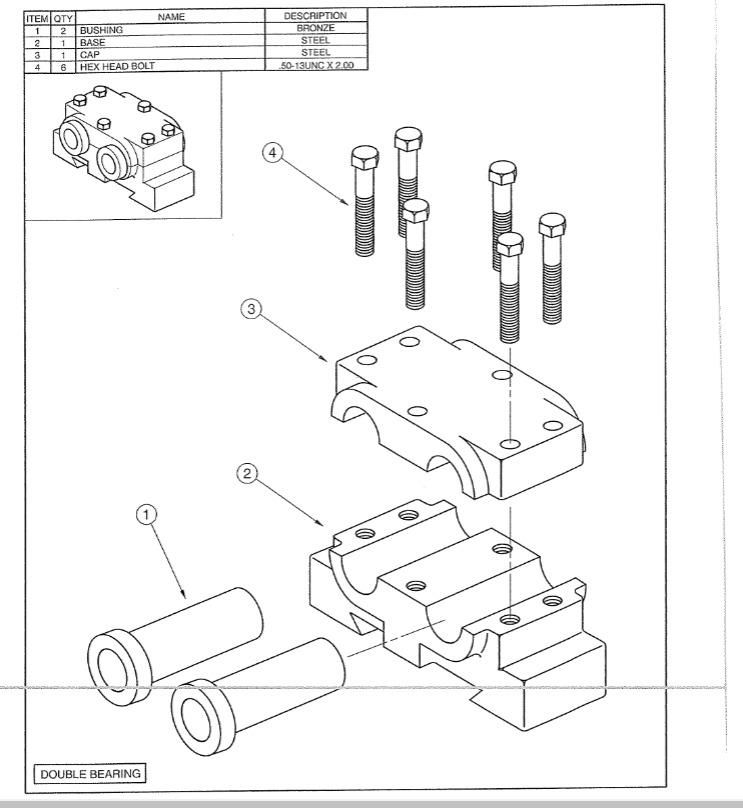

- Double Bearing Assembly Drawing Show All The Steps In Solidworks Create Assembly Drawing Using Size B Landscape Drawing 1 (64.17 KiB) Viewed 54 times
