A pulley 1.2 m in diameter and supporting a load of 900 N is mounted at B on a horizontal beam (below figure). The beam

Post by answerhappygod »

A Pulley 1 2 M In Diameter And Supporting A Load Of 900 N Is Mounted At B On A Horizontal Beam Below Figure The Beam 1
A Pulley 1 2 M In Diameter And Supporting A Load Of 900 N Is Mounted At B On A Horizontal Beam Below Figure The Beam 1 (1.34 MiB) Viewed 45 times

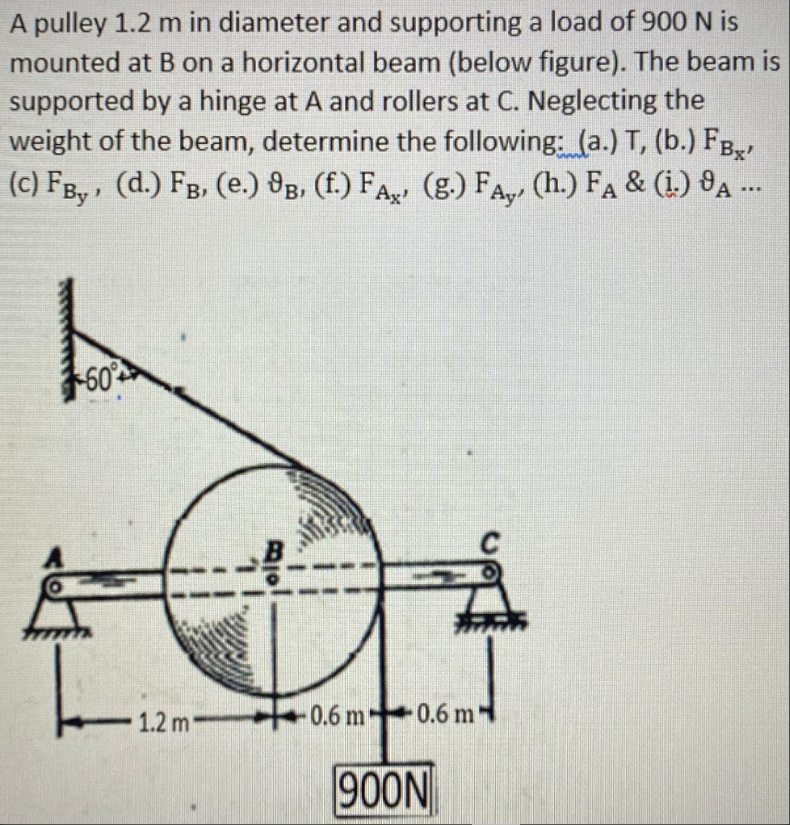

A pulley 1.2 m in diameter and supporting a load of 900 N is mounted at B on a horizontal beam (below figure). The beam is supported by a hinge at A and rollers at C. Neglecting the weight of the beam, determine the following: (a.) T, (b.) FBx, (C) FBy, (d.) FB, (e.) 88, (f.) FĄ, (g.) Fay, (h.) FA & (i.) 8A --- Ax Ay А А 1-60 с 19100 L 1.2 m 0.6 m 0.6 m 900N
