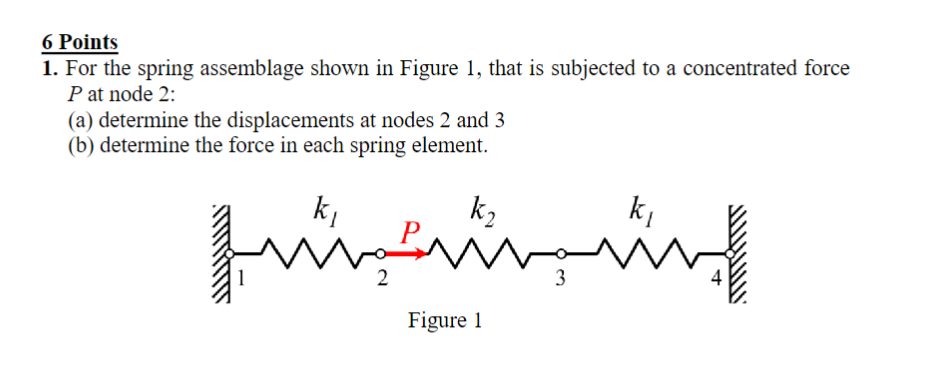

For the spring assemblage shown in Figure 1, that is subjected
to a concentrated force
P at node 2:
(a) determine the displacements at nodes 2 and 3
(b) determine the force in each spring element
6 Points 1. For the spring assemblage shown in Figure 1, that is subjected to a concentrated force Pat node 2: (a) determine the displacements at nodes 2 and 3 (b) determine the force in each spring element. ki k für پمپس Figure 1
