The wheel is moving to the right such that it has an angular velocity w = 1.8 rad/s and angular acceleration a = 4.0 rad

[answerhappygod]

The Wheel Is Moving To The Right Such That It Has An Angular Velocity W 1 8 Rad S And Angular Acceleration A 4 0 Rad 1 (25.58 KiB) Viewed 55 times

Please solve and show your work.

The Wheel Is Moving To The Right Such That It Has An Angular Velocity W 1 8 Rad S And Angular Acceleration A 4 0 Rad 2 (41.67 KiB) Viewed 55 times

The Wheel Is Moving To The Right Such That It Has An Angular Velocity W 1 8 Rad S And Angular Acceleration A 4 0 Rad 3 (40.35 KiB) Viewed 55 times

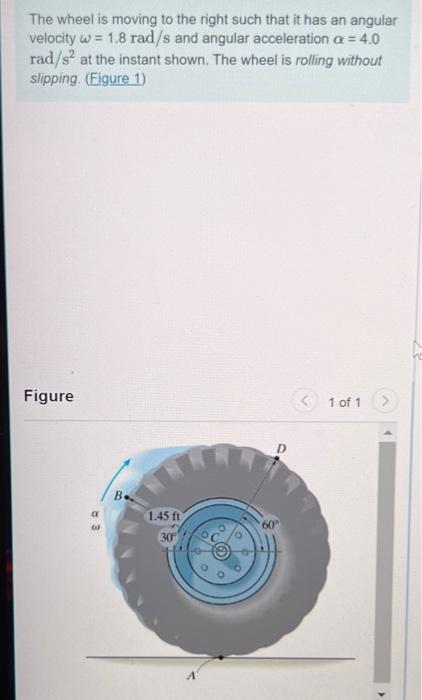

The wheel is moving to the right such that it has an angular velocity w = 1.8 rad/s and angular acceleration a = 4.0 rad/s’ at the instant shown. The wheel is rolling without slipping. (Eigure 1) Figure < 1 of 1 В. a 1.451 30

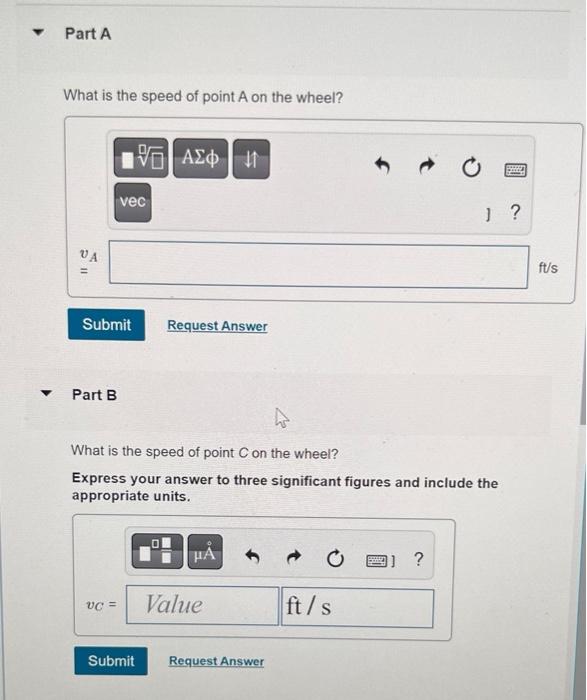

Part A What is the speed of point A on the wheel? Pal ΑΣΦΙ! t Bar vec 1 ? UA ft/s 11 Submit Request Answer Part B What is the speed of point on the wheel? Express your answer to three significant figures and include the appropriate units. НА ? UC = Value Ift/s Submit Request Answer

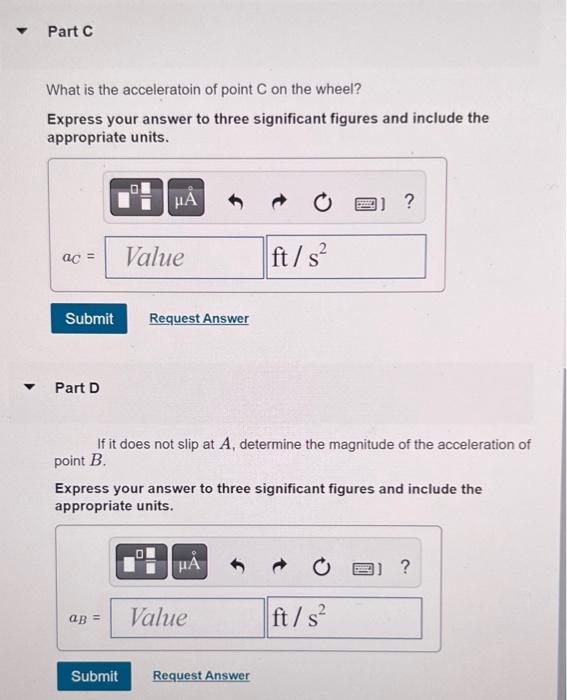

Part What is the acceleratoin of point C on the wheel? Express your answer to three significant figures and include the appropriate units. НА u ? ac = Value /? Ift/s² Submit Request Answer Part D If it does not slip at A, determine the magnitude of the acceleration of point B. Express your answer to three significant figures and include the appropriate units. ДА ? ab = Value Ift/s² Submit Request Answer
