6- A two-dimensional strain field is given by: Ex =c(-4.5x2+10.5y?) &y=c(1.5x27.5y?) Yxy =1.5bxy where b and c are nonze

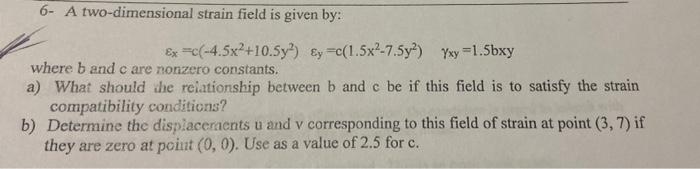

6- A two-dimensional strain field is given by: Ex =c(-4.5x2+10.5y?) &y=c(1.5x27.5y?) Yxy =1.5bxy where b and c are nonzero constants. a) What should the relationship between b and c be if this field is to satisfy the strain compatibility conditions? b) Determine the displacements u and v corresponding to this field of strain at point (3,7) if they are zero at point(0,0). Use as a value of 2.5 for c.
