6- The figure below shows a circular steel ring of 200 mm mean radius and a uniform rectangular section of 75 mm wide an

[answerhappygod]

6 The Figure Below Shows A Circular Steel Ring Of 200 Mm Mean Radius And A Uniform Rectangular Section Of 75 Mm Wide An 1 (33.14 KiB) Viewed 51 times

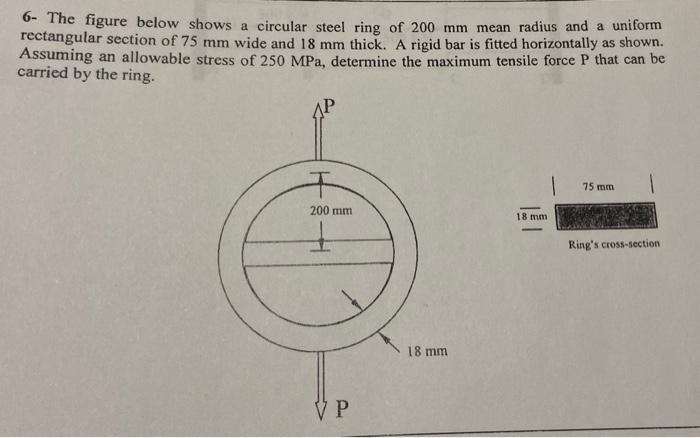

6- The figure below shows a circular steel ring of 200 mm mean radius and a uniform rectangular section of 75 mm wide and 18 mm thick. A rigid bar is fitted horizontally as shown. Assuming an allowable stress of 250 MPa, determine the maximum tensile force P that can be carried by the ring. AP 75 mm 200 mm 18 mm + Ring's cross-section 18 mm VP
