Question 2 (5 pts): Given the mass-spring-damper system shown on the right, m = 4 kg, k = 100 N/m, and c = 24 kg/s. m F(

[answerhappygod]

Question 2 5 Pts Given The Mass Spring Damper System Shown On The Right M 4 Kg K 100 N M And C 24 Kg S M F 1 (85.96 KiB) Viewed 55 times

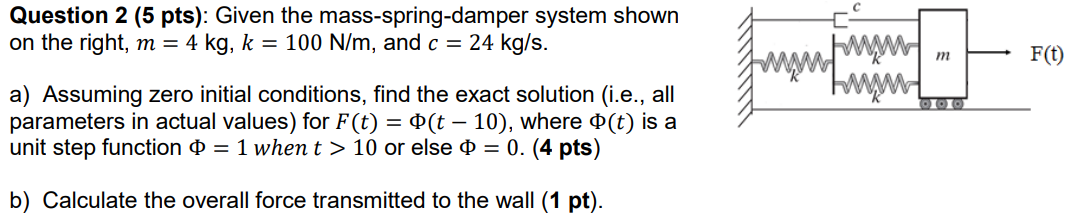

Question 2 (5 pts): Given the mass-spring-damper system shown on the right, m = 4 kg, k = 100 N/m, and c = 24 kg/s. m F(t) www www OTO a) Assuming zero initial conditions, find the exact solution (i.e., all parameters in actual values) for F(t) = º(t – 10), where 0(t) is a unit step function 0 = 1 when t > 10 or else Q = 0. (4 pts) b) Calculate the overall force transmitted to the wall (1 pt).
