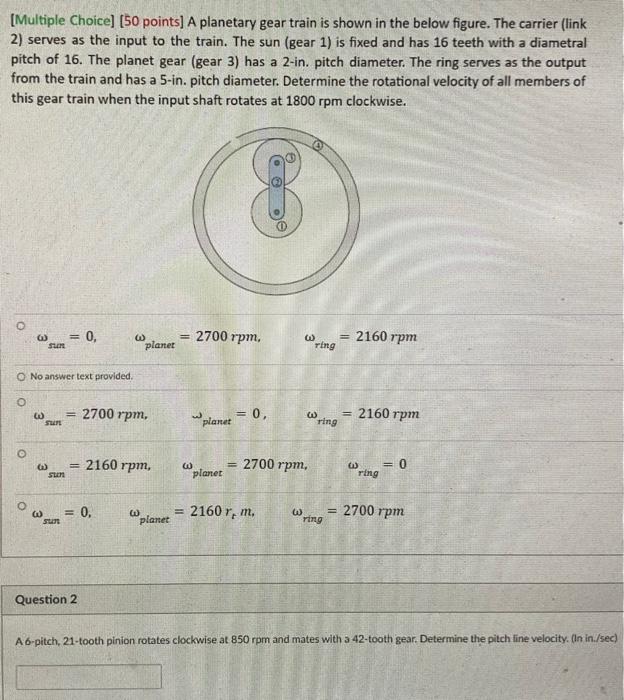

[Multiple Choice) (50 points) A planetary gear train is shown in the below figure. The carrier (link 2) serves as the in

[answerhappygod]

Multiple Choice 50 Points A Planetary Gear Train Is Shown In The Below Figure The Carrier Link 2 Serves As The In 1 (76.14 KiB) Viewed 71 times

[Multiple Choice) (50 points) A planetary gear train is shown in the below figure. The carrier (link 2) serves as the input to the train. The sun (gear 1) is fixed and has 16 teeth with a diametral pitch of 16. The planet gear (gear 3) has a 2-in. pitch diameter. The ring serves as the output from the train and has a 5-in. pitch diameter. Determine the rotational velocity of all members of this gear train when the input shaft rotates at 1800 rpm clockwise. 65 sum = 0, 2700 rpm planet w = 2160 rpm ring No answer text provided. o = 2700 rpm 0, w = 2160 rpm SU planet ring O 2160 rpm, لا 2700 rpm. الا = 0 ring SUM planet O O 0. w 2160 r, m. planet 2700 rpm wring su Question 2 A 6-pitch, 21-tooth pinion rotates clockwise at 850 rpm and mates with a 42-tooth gear. Determine the pitch line velocity. (In in./sec)
