4.2) For the frame structure shown below, the joints at points A, B, C, D and E are all pin connections. If force P1 = 580 lb and force P2 = 320 lb, determine the the internal bending moment in lb-ft) acting on the cross section at point Fof the beam. Point Fis located immediately to the right of force P2. Please pay attention: the numbers may change since they are randomized. Sign convention for internal loading must be followed. Your answer must include 1 place after the decimal point.

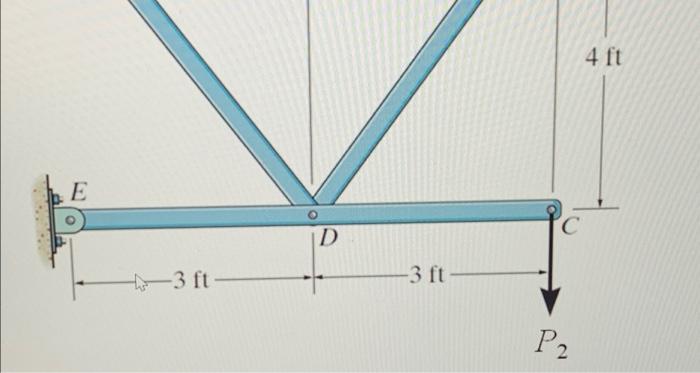

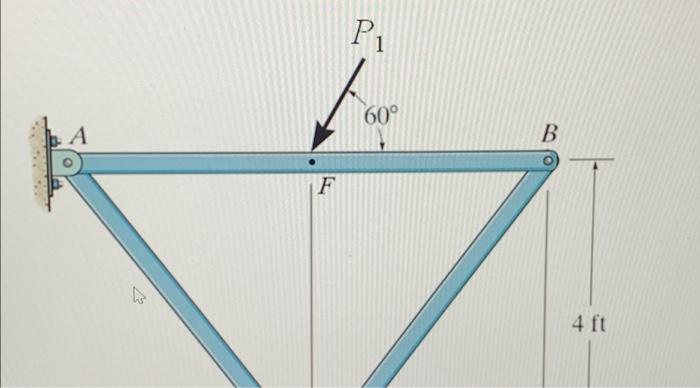

P1 60° А B F F he 4 ft
4 ft E C D 3 ft- 3 ft P2
