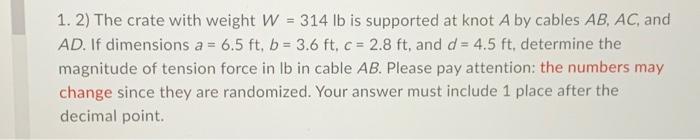

1. 2) The crate with weight W = 314 lb is supported at knot A by cables AB, AC, and AD. If dimensions a = 6.5 ft, b = 3.6 ft. c = 2.8 ft, and d = 4.5 ft, determine the magnitude of tension force in lb in cable AB. Please pay attention: the numbers may change since they are randomized. Your answer must include 1 place after the decimal point

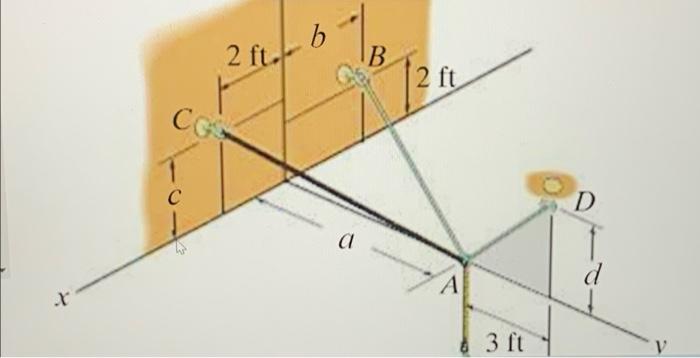

2 flt 21 b B 2 ft con C D d1 A d & 3 ft
