(4) Three cast iron pipes are laid in parallel with the dimensions given in the table below: Pipe Length, m Diameter, cm

[answerhappygod]

4 Three Cast Iron Pipes Are Laid In Parallel With The Dimensions Given In The Table Below Pipe Length M Diameter Cm 1 (119.33 KiB) Viewed 63 times

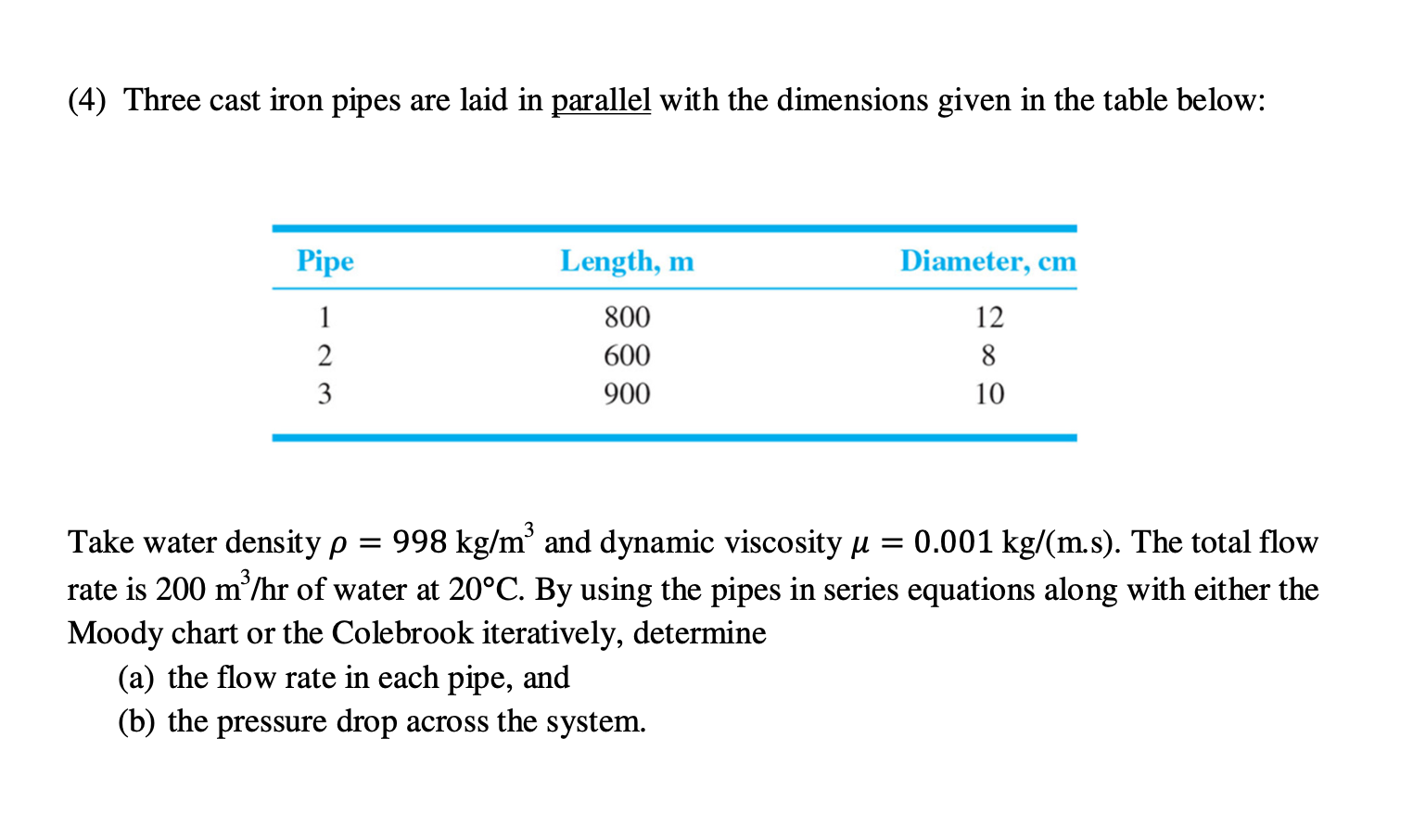

(4) Three cast iron pipes are laid in parallel with the dimensions given in the table below: Pipe Length, m Diameter, cm 1 2 3 800 600 900 12 8 10 = Take water density p 998 kg/m² and dynamic viscosity u = 0.001 kg/(m.s). The total flow rate is 200 mº/hr of water at 20°C. By using the pipes in series equations along with either the Moody chart or the Colebrook iteratively, determine (a) the flow rate in each pipe, and (b) the pressure drop across the system.
