4. (16 Points) The titanium bar with a SQUARE cross-section as shown below (E = 114 GPa) is subjected to the forces show

Post by answerhappygod »

4 16 Points The Titanium Bar With A Square Cross Section As Shown Below E 114 Gpa Is Subjected To The Forces Show 1
4 16 Points The Titanium Bar With A Square Cross Section As Shown Below E 114 Gpa Is Subjected To The Forces Show 1 (27.53 KiB) Viewed 42 times

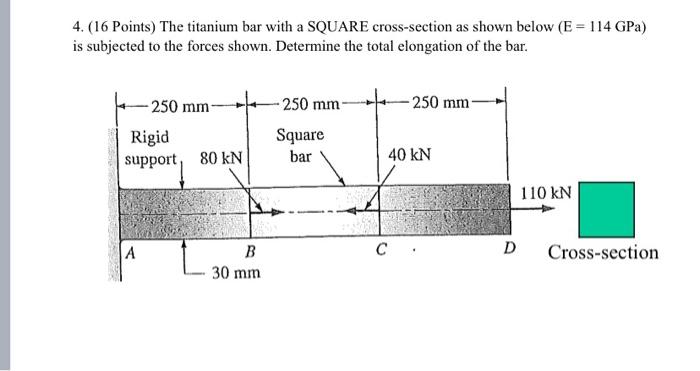

4. (16 Points) The titanium bar with a SQUARE cross-section as shown below (E = 114 GPa) is subjected to the forces shown. Determine the total elongation of the bar. 250 mm -250 mm Rigid support, 80 KN -250 mm Square bar 40 KN 110 kN A C. D B 30 mm Cross-section
