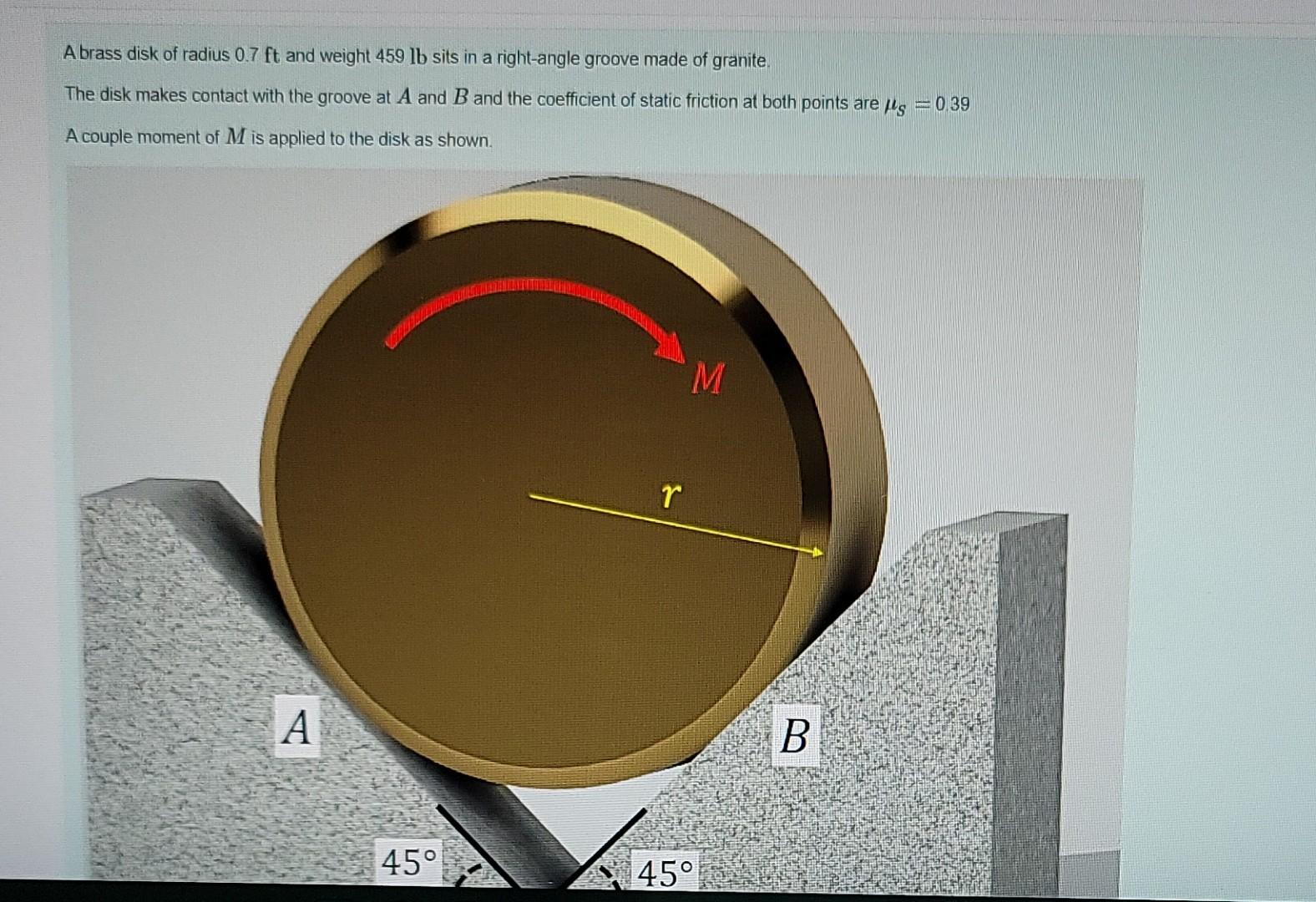

A brass disk of radius 0.7 ft and weight 459 lb sits in a right-angle groove made of granite. The disk makes contact with the groove at A and B and the coefficient of static friction at both points are plg = 0.39 A couple moment of M is applied to the disk as shown M r A B 45° 45°

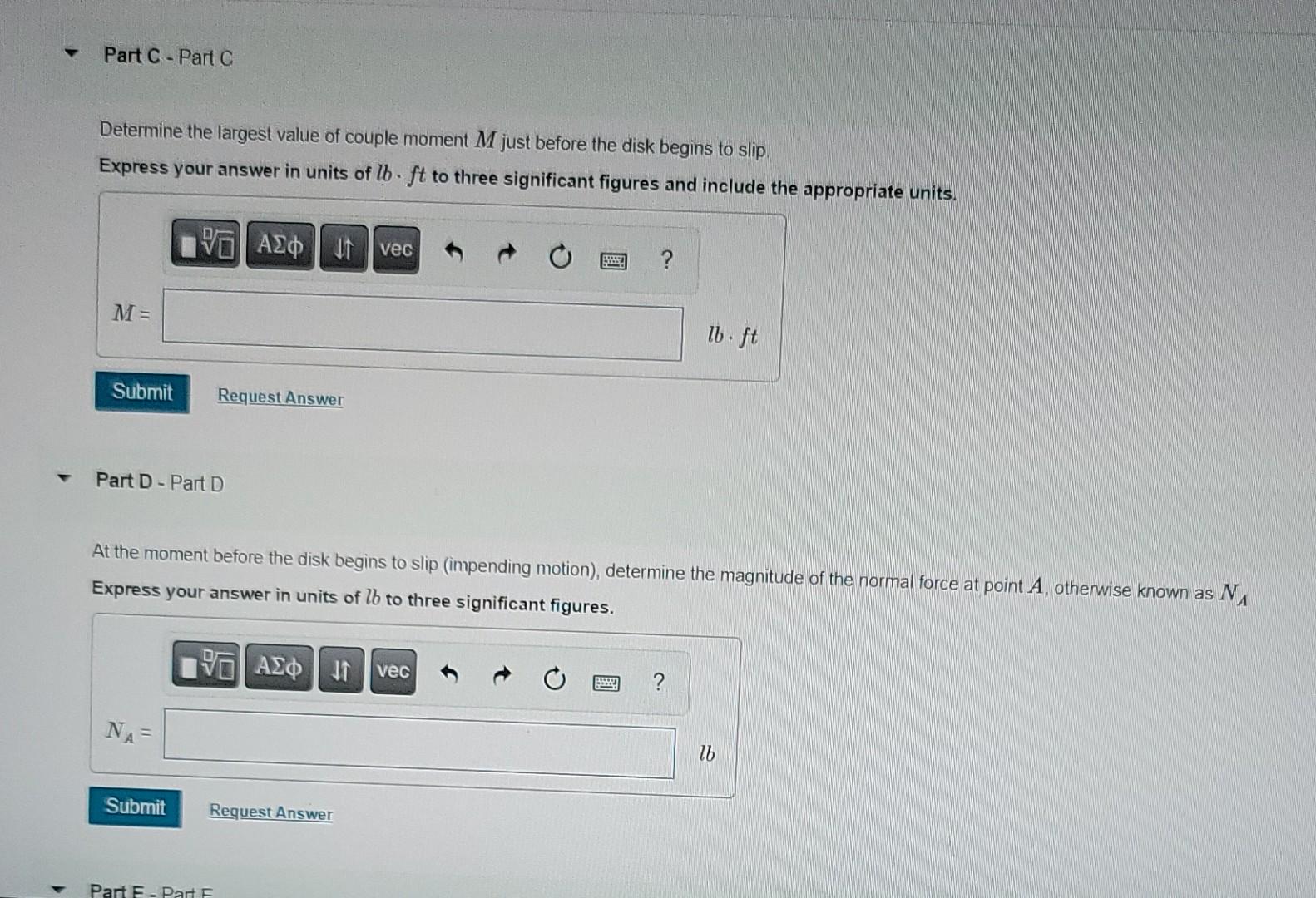

Part C - Part Determine the largest value of couple moment M just before the disk begins to slip. Express your answer in units of lb-ft to three significant figures and include the appropriate units. IVO A vec ? M= Ib. ft Submit Request Answer Part D - Part D At the moment before the disk begins to slip (impending motion), determine the magnitude of the normal force at point A, otherwise known as NA Express your answer in units of lb to three significant figures. IVO ALO11 vec NA 16 Submit Request Answer Part F- Part F
em 4 Submit Request Answer Part D - Part 2 At the moment before the disk begins to slip (impending motion), determine the magnitude of the normal force at point A, otherwise known as NA Express your answer in units of lb to three significant figures. VOI AEQ11 vec We 16 Submit Request Answer Part E - Part E At the moment before the disk begins to slip (impending motion), determine the magnitude of the normal force at point B, otherwise known as NB Express your answer in units of lb to three significant figures. Vo ΑΣΦJ1 vec NB = 16
