2. (24 Points) The elastic potion of the stress-strain diagram of an unknown alloy is given below. The original length o

Post by answerhappygod »

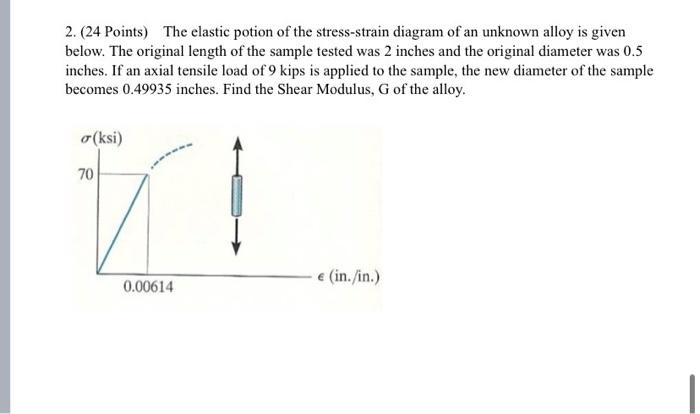

2 24 Points The Elastic Potion Of The Stress Strain Diagram Of An Unknown Alloy Is Given Below The Original Length O 1
2 24 Points The Elastic Potion Of The Stress Strain Diagram Of An Unknown Alloy Is Given Below The Original Length O 1 (23.08 KiB) Viewed 49 times
2. (24 Points) The elastic potion of the stress-strain diagram of an unknown alloy is given below. The original length of the sample tested was 2 inches and the original diameter was 0.5 inches. If an axial tensile load of 9 kips is applied to the sample, the new diameter of the sample becomes 0.49935 inches. Find the Shear Modulus, G of the alloy. (ksi) 70 € (in./in.) 0.00614
