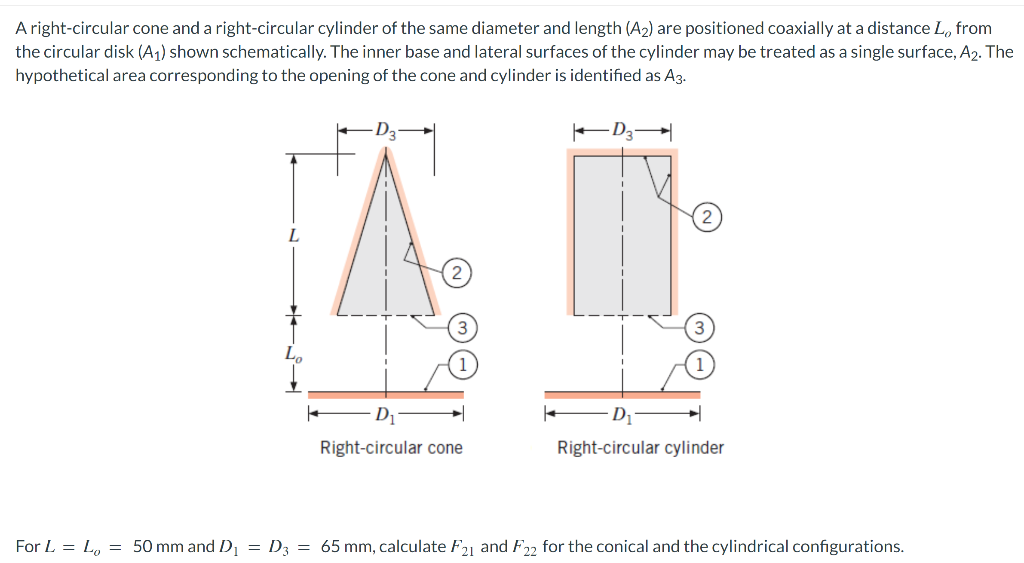

A right-circular cone and a right-circular cylinder of the same diameter and length (A2) are positioned coaxially at a distance Le from the circular disk (A1) shown schematically. The inner base and lateral surfaces of the cylinder may be treated as a single surface, A2. The hypothetical area corresponding to the opening of the cone and cylinder is identified as A3. Da -D L D -D Right-circular cylinder Right-circular cone For L = L = 50 mm and D = D3 = 65 mm, calculate F21 and F22 for the conical and the cylindrical configurations.
For L = L = 50 mm and D = D3 = 65 mm, calculate F21 and F22 for the conical and the cylindrical configurations. = = F21.cone = = Ho F22.cone = i F21.cyl = i F22,cyl = Ho
