Two concentric spheres of diameter Di = 0.9 m and D2 = 1.2 m are separated by an air space and have surface temperatures

[answerhappygod]

Two Concentric Spheres Of Diameter Di 0 9 M And D2 1 2 M Are Separated By An Air Space And Have Surface Temperatures 1 (60.4 KiB) Viewed 62 times

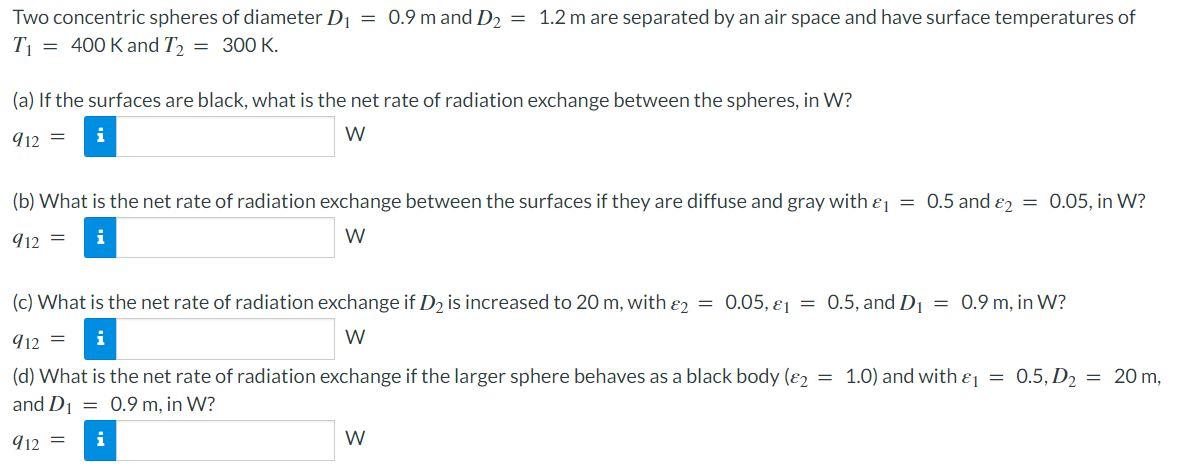

Two concentric spheres of diameter Di = 0.9 m and D2 = 1.2 m are separated by an air space and have surface temperatures of Ti = 400 K and T2 = 300 K. (a) If the surfaces are black, what is the net rate of radiation exchange between the spheres, in W? 912 = i W (b) What is the net rate of radiation exchange between the surfaces if they are diffuse and gray with ej = 0.5 and 2 = 0.05, in W? 912 = i W (c) What is the net rate of radiation exchange if D2 is increased to 20 m, with €2 = 0.05, €1 = 0.5, and D1 = 0.9 m, in W? W 912 = (d) What is the net rate of radiation exchange if the larger sphere behaves as a black body (E2 = 1.0) and with ej = 0.5, D2 = 20 m, and D1 = 0.9 m, in W? 912 i w
