Q3 (25 points) The box beam shown below is subjected to a maximum shearing force of -7 kN, and a a maximum bending momen

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q3 (25 points) The box beam shown below is subjected to a maximum shearing force of -7 kN, and a a maximum bending momen

Post by answerhappygod »

Q3 25 Points The Box Beam Shown Below Is Subjected To A Maximum Shearing Force Of 7 Kn And A A Maximum Bending Momen 1
Q3 25 Points The Box Beam Shown Below Is Subjected To A Maximum Shearing Force Of 7 Kn And A A Maximum Bending Momen 1 (1.02 MiB) Viewed 54 times

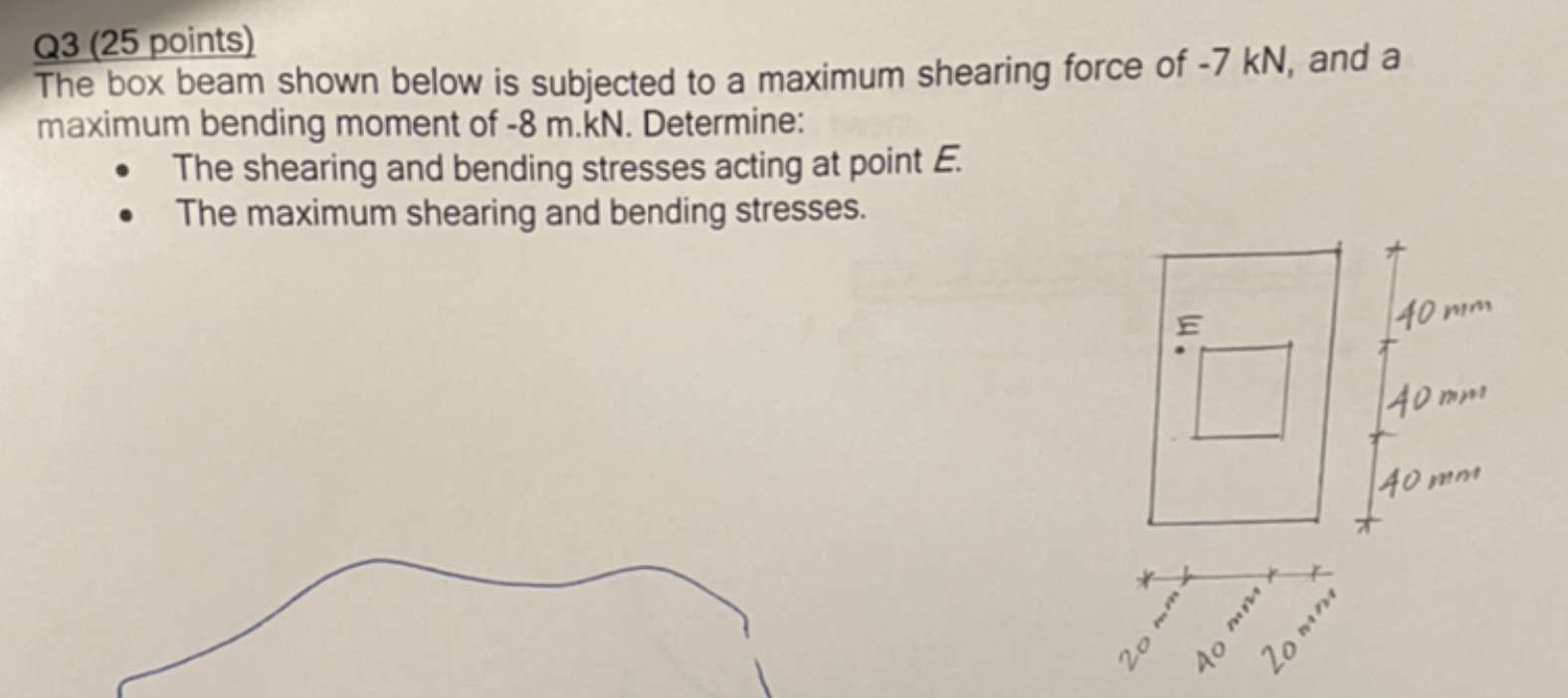

Q3 (25 points) The box beam shown below is subjected to a maximum shearing force of -7 kN, and a a maximum bending moment of -8 m.kN. Determine: The shearing and bending stresses acting at point E. The maximum shearing and bending stresses. 40mm 14. 140mm 140mm 20 mm 40 m Mi 07.
