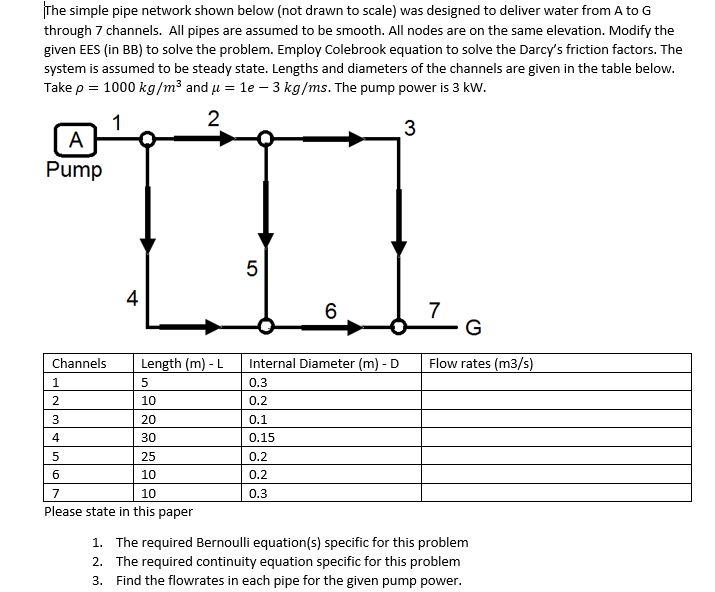

The simple pipe network shown below (not drawn to scale) was designed to deliver water from A to G through 7 channels. A

[answerhappygod]

The Simple Pipe Network Shown Below Not Drawn To Scale Was Designed To Deliver Water From A To G Through 7 Channels A 1 (39.18 KiB) Viewed 58 times

The simple pipe network shown below (not drawn to scale) was designed to deliver water from A to G through 7 channels. All pipes are assumed to be smooth. All nodes are on the same elevation. Modify the given EES (in BB) to solve the problem. Employ Colebrook equation to solve the Darcy's friction factors. The system is assumed to be steady state. Lengths and diameters of the channels are given in the table below. Take p = 1000 kg/m3 and u = 1e - 3 kg/ms. The pump power is 3 kW. 1 2 3 A Pump 5 4 6 7 -G Flow rates (m3/s) Internal Diameter (m)-D 0.3 0.2 0.1 Channels Length (m) -L 1 5 2 10 3 20 4 30 5 25 6 10 7 10 Please state in this paper 0.15 0.2 0.2 0.3 1. The required Bernoulli equation(s) specific for this problem 2. The required continuity equation specific for this problem 3. Find the flowrates in each pipe for the given pump power.
