Problem No. 4: A double threaded trapezoidal screw with a root diameter of 2 in and 2 threads/in is used in conjunction

Post by answerhappygod »

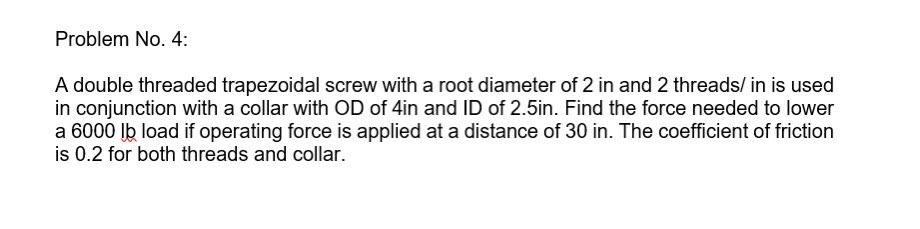

Problem No 4 A Double Threaded Trapezoidal Screw With A Root Diameter Of 2 In And 2 Threads In Is Used In Conjunction 1
Problem No 4 A Double Threaded Trapezoidal Screw With A Root Diameter Of 2 In And 2 Threads In Is Used In Conjunction 1 (28.72 KiB) Viewed 51 times
Problem No. 4: A double threaded trapezoidal screw with a root diameter of 2 in and 2 threads/in is used in conjunction with a collar with OD of 4in and ID of 2.5in. Find the force needed to lower a 6000 lb load if operating force is applied at a distance of 30 in. The coefficient of friction is 0.2 for both threads and collar.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
