8. Below is a stress-strain curve for a material. Calculate the following: (11) a. Young's modulus (3) b. Yield strength
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
8. Below is a stress-strain curve for a material. Calculate the following: (11) a. Young's modulus (3) b. Yield strength

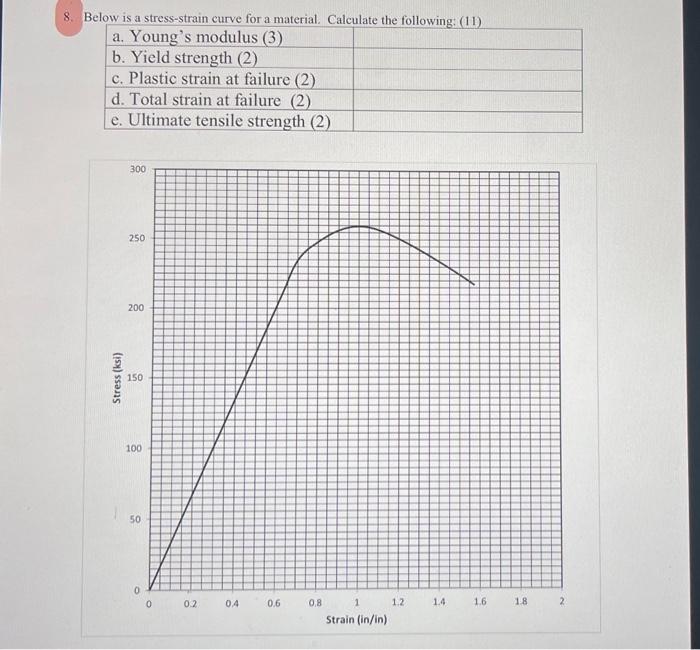

8. Below is a stress-strain curve for a material. Calculate the following: (11) a. Young's modulus (3) b. Yield strength (2) c. Plastic strain at failure (2) d. Total strain at failure (2) e. Ultimate tensile strength (2) 300 250 200 Stress (ksi) 150 100 50 0 0 0.2 04 0.6 0,8 1.2 1.4 1.6 1.8 2 1 Strain (in/in)
