= A 9.2-m-long steel [E = 202 GPa) pipe column has an outside diameter of 189 mm and a wall thickness of 6 mm. The colum

Post by answerhappygod »

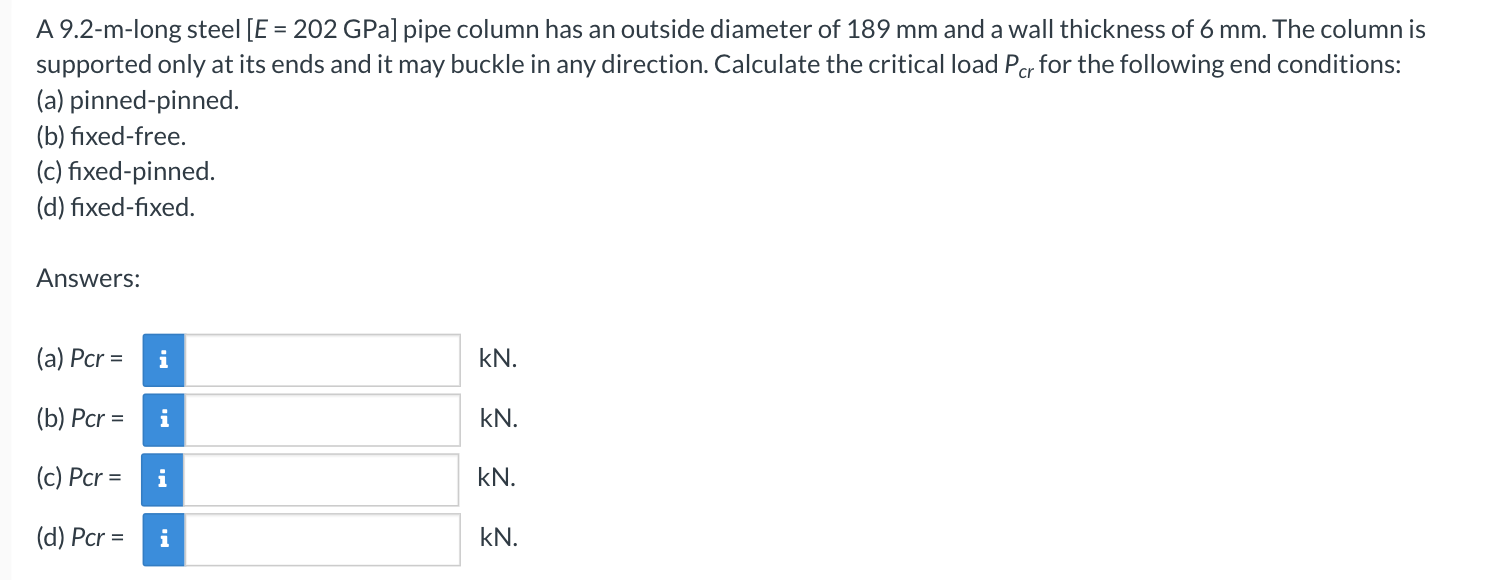

A 9 2 M Long Steel E 202 Gpa Pipe Column Has An Outside Diameter Of 189 Mm And A Wall Thickness Of 6 Mm The Colum 1
A 9 2 M Long Steel E 202 Gpa Pipe Column Has An Outside Diameter Of 189 Mm And A Wall Thickness Of 6 Mm The Colum 1 (55.61 KiB) Viewed 64 times
= A 9.2-m-long steel [E = 202 GPa) pipe column has an outside diameter of 189 mm and a wall thickness of 6 mm. The column is supported only at its ends and it may buckle in any direction. Calculate the critical load Pcr for the following end conditions: (a) pinned-pinned. (b) fixed-free. (c) fixed-pinned. (d) fixed-fixed. Answers: (a) Per = i kN. (b) Pcr = i kN. (c) Pcr = i kN. (d) Pcr = i kN.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
