The steel compression link shown has a rectangular cross section and supports an axial load of P. The supports allow rot

Post by answerhappygod »

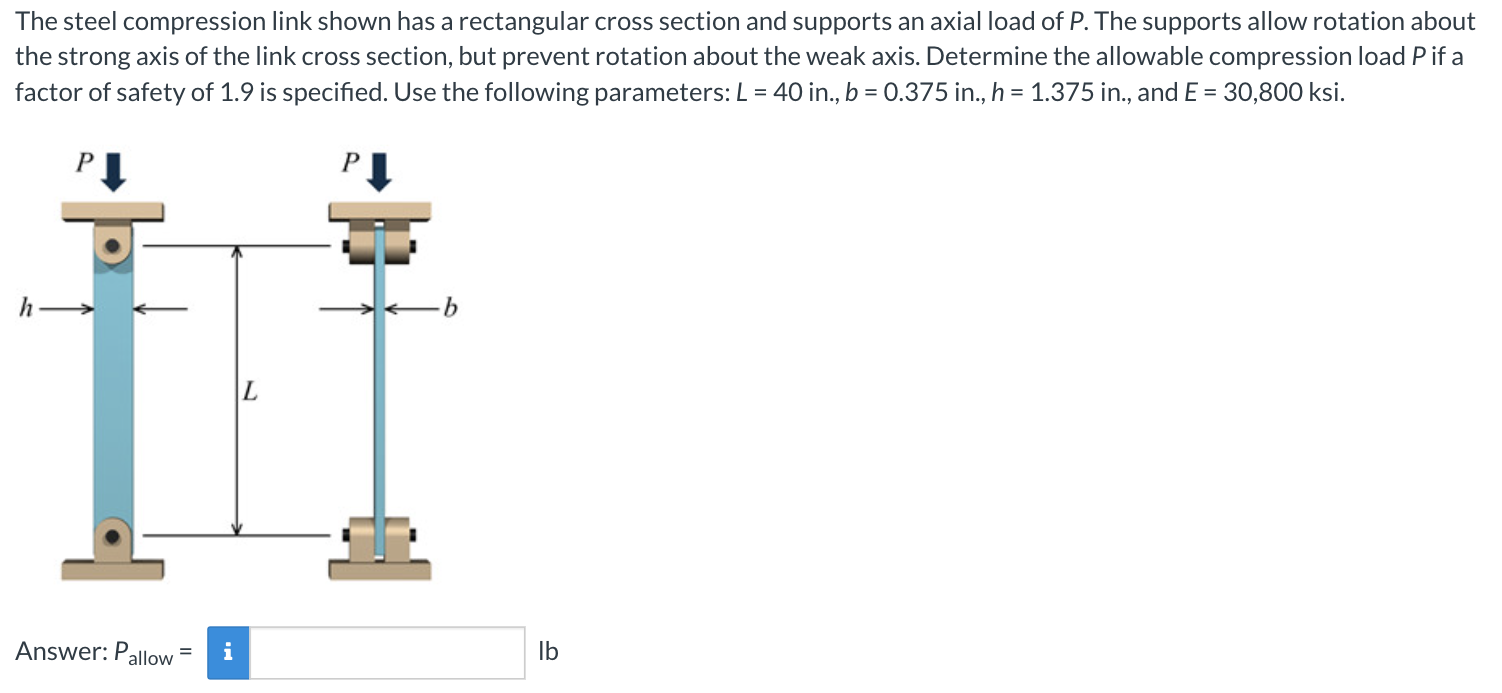

The Steel Compression Link Shown Has A Rectangular Cross Section And Supports An Axial Load Of P The Supports Allow Rot 1
The Steel Compression Link Shown Has A Rectangular Cross Section And Supports An Axial Load Of P The Supports Allow Rot 1 (129.27 KiB) Viewed 31 times
The steel compression link shown has a rectangular cross section and supports an axial load of P. The supports allow rotation about the strong axis of the link cross section, but prevent rotation about the weak axis. Determine the allowable compression load Pif a factor of safety of 1.9 is specified. Use the following parameters: L = 40 in., b = 0.375 in., h = 1.375 in., and E = 30,800 ksi. P b L Answer: Pallow i Ib
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
