B C 60 04 In 60 In The Load In Of 2250 Lb Is To Be Supported By The Two Vertical Steel Wires For Which Oy 66 Ksi Or 1 (55.95 KiB) Viewed 47 times
a.Determine the force developed in wire AB after the load is suspended.
Express your answer to three significant figures and include appropriate units.
b.Determine the force developed in wire AC after the load is suspended.
Express your answer to three significant figures and include appropriate units.

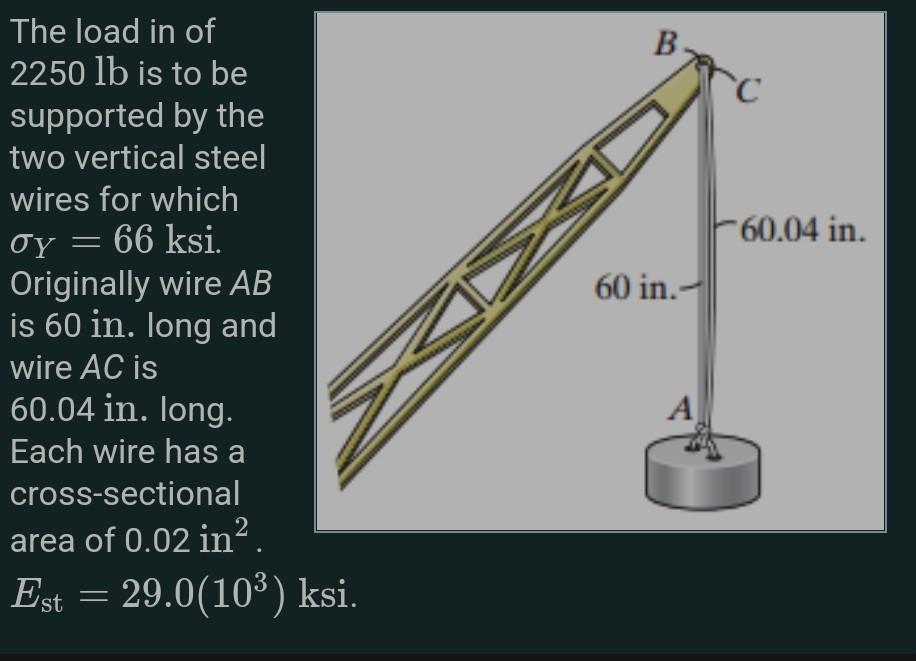

B C 60.04 in. 60 in. The load in of 2250 lb is to be supported by the two vertical steel wires for which Oy = 66 ksi. Originally wire AB is 60 in. long and wire AC is 60.04 in. long. Each wire has a cross-sectional area of 0.02 in2. Est = 29.0(103) ksi. А =
