QUESTION3

Question3 B Determine The Effective Distance X From The Center Of Gravity Of The Crate At Which The Total Force R Act 1 (134.4 KiB) Viewed 56 times

b) Determine the effective distance 'x' from the center of
gravity of the crate at which the total force R acts in m when h =
4 m. R is the vector sum of friction F and normal reaction force
N.
c) What type of impending motion is produced by force P in
Question 11?
a. both tipping and sliding
b. neither tipping nor sliding
c. sliding
d. It cannot be determined from the information given
e. tipping
d) Determine the minimum value of h for which sliding occurs in
m.
e) Determine the value of h for which impending
motion by slipping and by tipping would occur simultaneously
in m.
I URGENTLY NEED THIS ANSWERS WITHIN 30 MINUTES

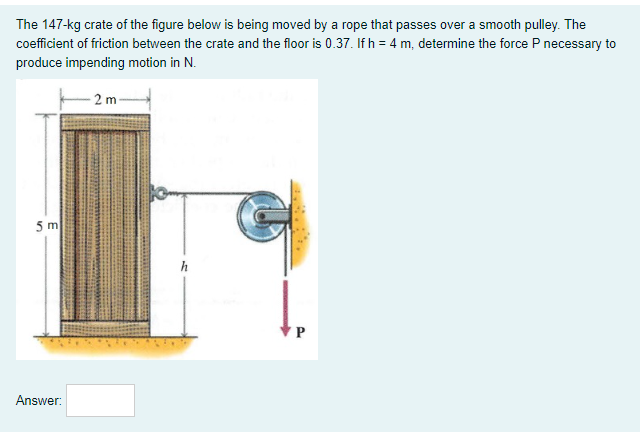

The 147-kg crate of the figure below is being moved by a rope that passes over a smooth pulley. The coefficient of friction between the crate and the floor is 0.37. If h = 4 m, determine the force P necessary to produce impending motion in N. 2 m 5 m P Answer:
