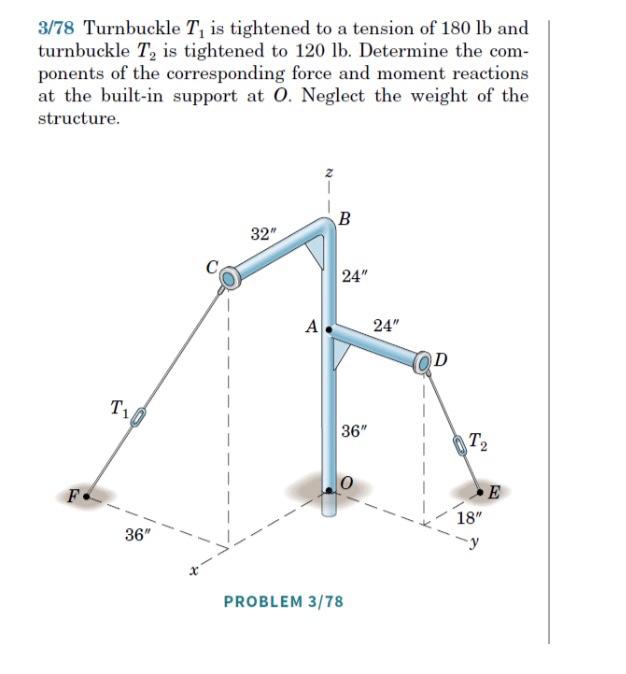

3/78 Turnbuckle T, is tightened to a tension of 180 lb and turnbuckle T, is tightened to 120 lb. Determine the com- ponents of the corresponding force and moment reactions at the built-in support at 0. Neglect the weight of the structure. B 32" 24" A 24" D T1 1 36" T2 F E 18" 36" y PROBLEM 3/78

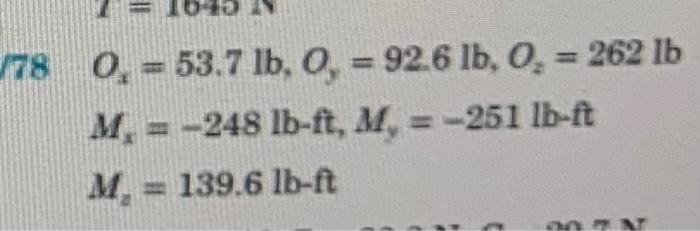

02 178 0. = 53.7 lb, 0, = 92.6 lb, O. = 262 lb M = -248 lb-ft, M, = -251 lb-ft M = 139.6 lb-ft
