- Question 2 B Calculate The Normal Reaction Force At The Rear Wheels For The Condition Of Rear Wheel Drive In N C Dete 1 (115.19 KiB) Viewed 56 times
for the condition of rear-wheel drive in N.
c) Determine the maximum incline θ [degrees] that the
car can drive up if it has front-wheel drive.
d) Calculate the normal reaction force at the front wheels
for the condition of front-wheel drive in N.
e) Which drive system provides better traction?
a. Either rear- or front-wheel drive depending on the type of
car
b. It's not possible to determine from the given information
c. I don't know (for no marks)!
d. rear-wheel drive
e. front-wheel drive
I URGENTLY NEED THIS ANSWERS WITHIN 30 MINUTES

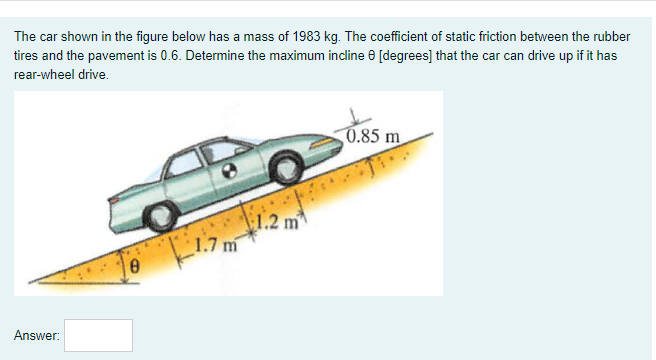

The car shown in the figure below has a mass of 1983 kg. The coefficient of static friction between the rubber tires and the pavement is 0.6. Determine the maximum incline @ [degrees] that the car can drive up if it has rear-wheel drive. 0.85 m 1.2 m 1.7 m Answer:
