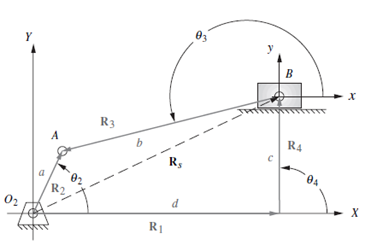

Consider a CRANK-SLIDE mechanism AS SHOWN IN THE FIGURE, WHERE
THE LENGTHS OF THE CRANK AND CONNECTING ROD ARE DENOTED BY THE
VARIABLES A AND B.
RESPECTIVELY, AND THE VARIEBLE C REPRESENTS THE VERTICAL DISTANCE
(IN THE POSITIVE STUDY) OF THE SLIDING GUIDE WITH RESPECT TO THE
PIVOT OF THE CRANK
Consider A Crank Slide Mechanism As Shown In The Figure Where The Lengths Of The Crank And Connecting Rod Are Denoted B 1 (18.99 KiB) Viewed 45 times
CONSIDER THE FOLLOWING DATA
h = 10cm
b = 25cm
c=5cm
Calculate the x-coordinate of the slider with respect to the
crank pivot when the angle of the crank is equal to 30° and the
angular velocity of the crank is 15°/s (consider the solution in
which the slider is to the right)
B X R3 A А 6 R4 RS c /R2, 02 d х RI
