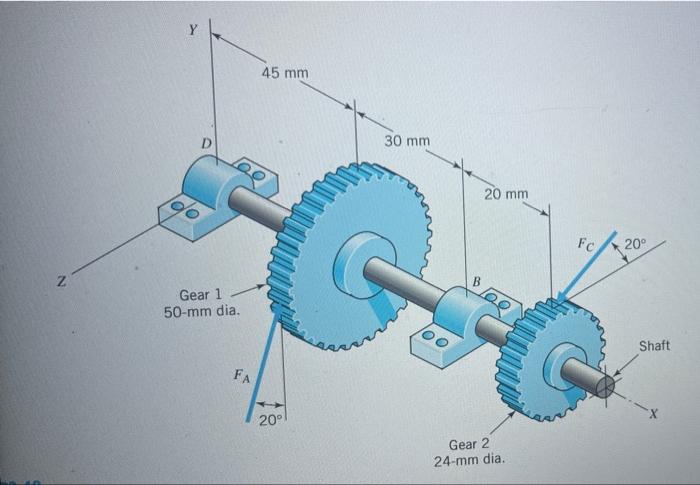

Y 45 mm 30 mm 20 mm FC 20° 2 G B BOO Gear 1 50-mm dia. o Shaft FA 20° Gear 2 24-mm dia.
2.49 For the gear and shaft assembly shown in Figure P2.48, where FA = 550 N, deter- mine the magnitude of the force Fc List assumptions.
